CNC machine for engraving and stone processing
Cobalm Idea Plus

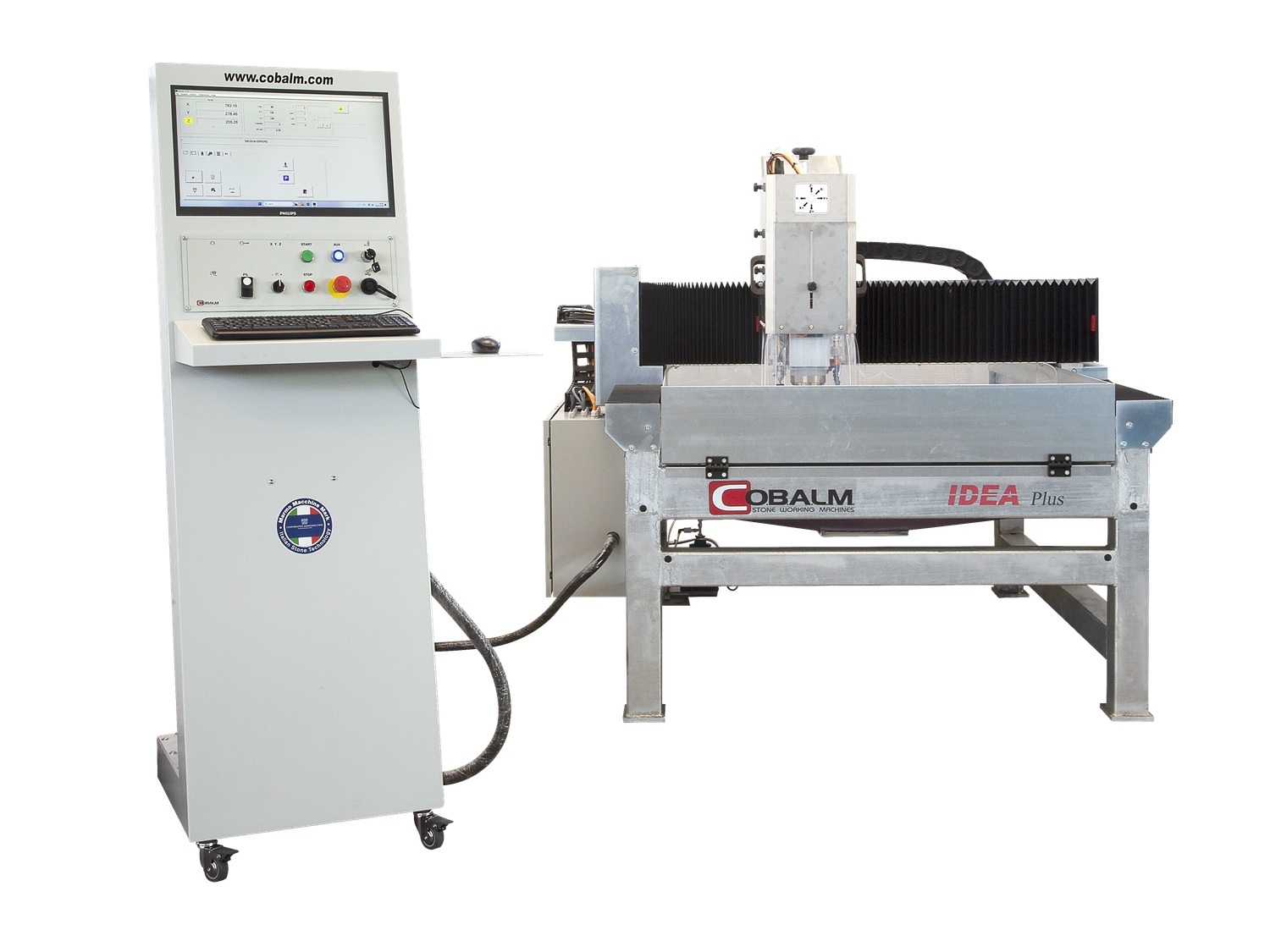

Cobalm Idea Plus is a compact 3-axis CNC machine for drilling, engraving and relief work in marble, granite and natural stone.

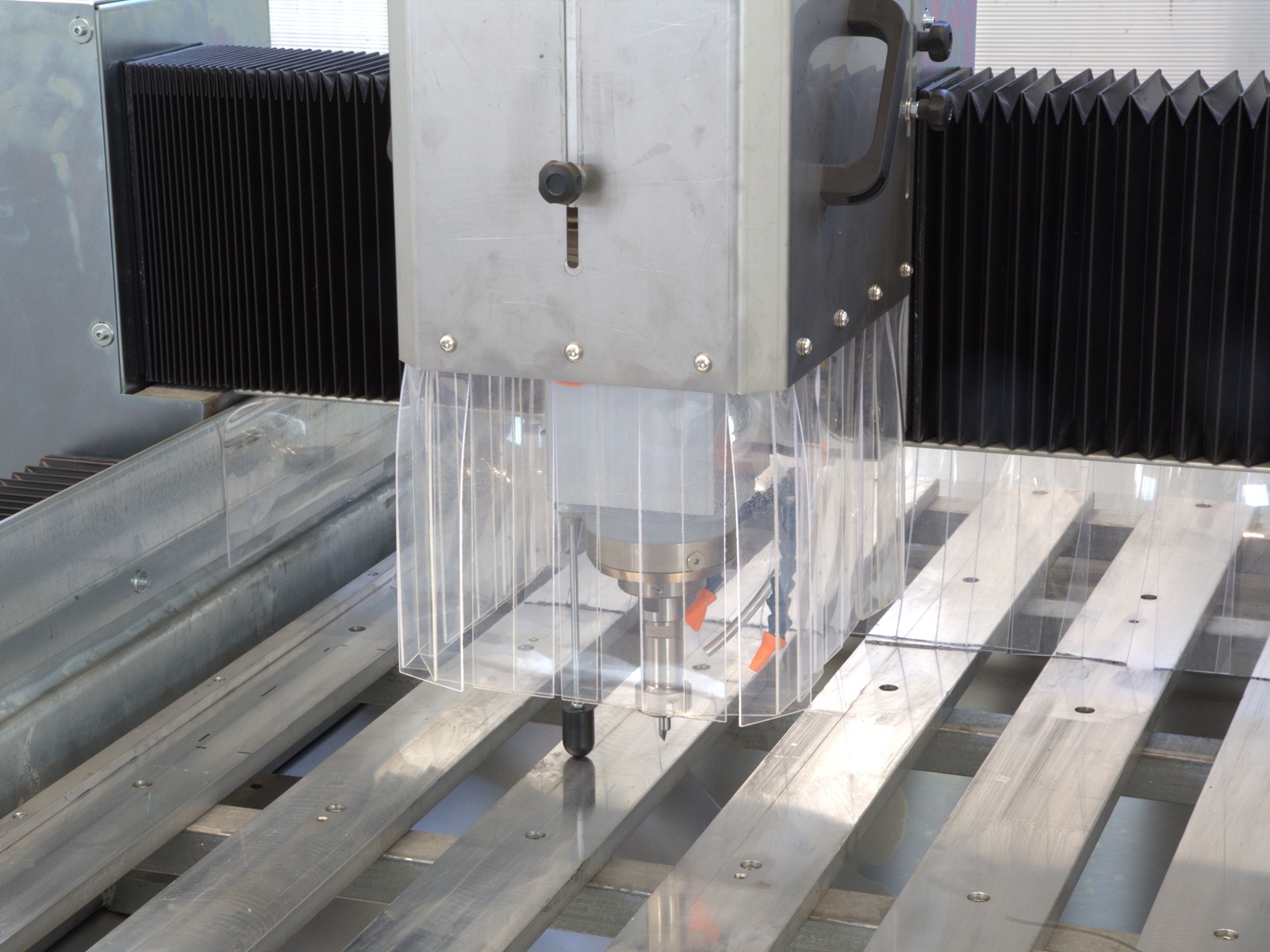

Cobalm Idea Plus is a compact CNC engraving machine with 3 interpolated XYZ axes developed for engraving, drilling and light machining in marble, granite, ceramics and natural stone.

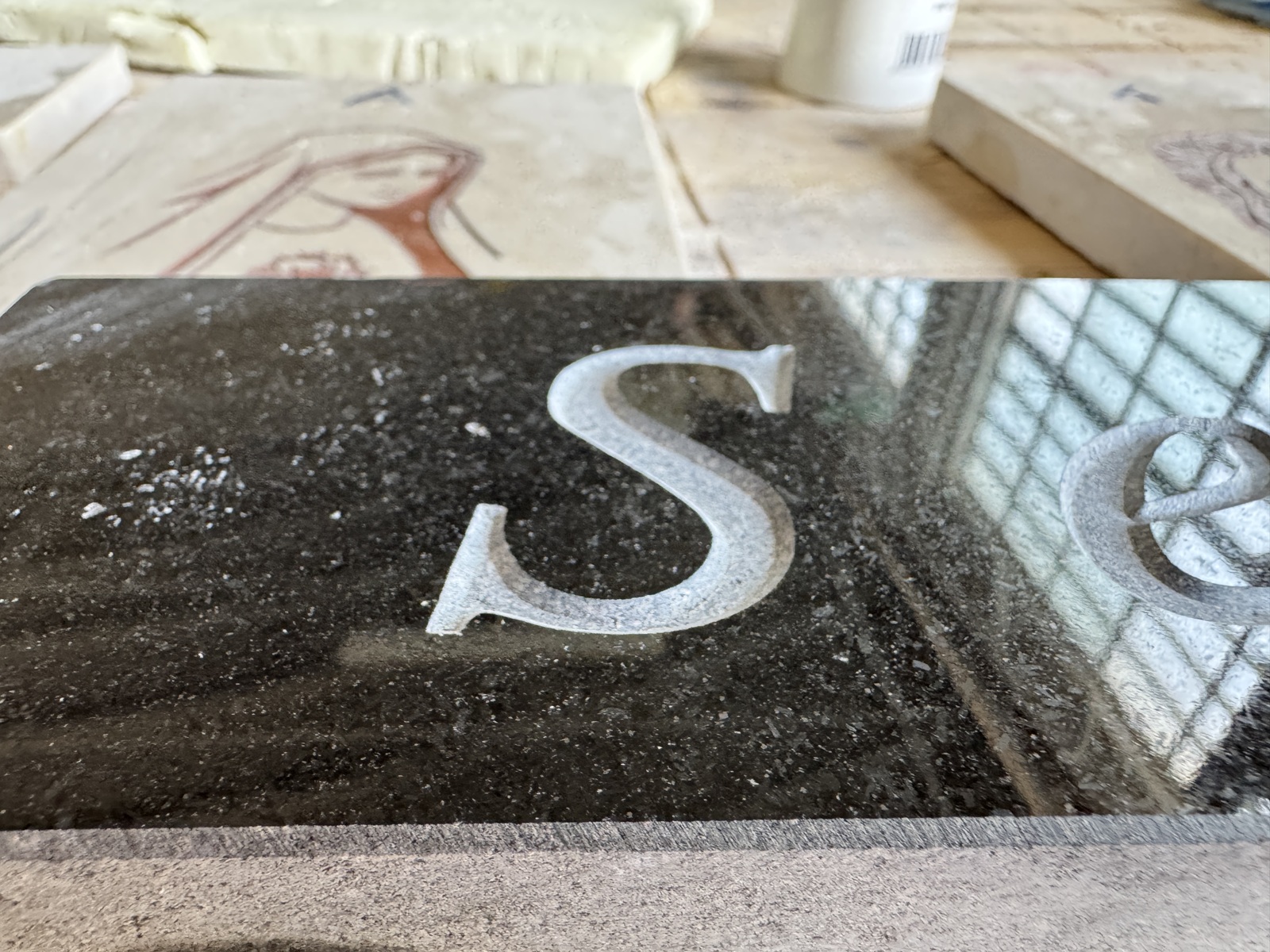

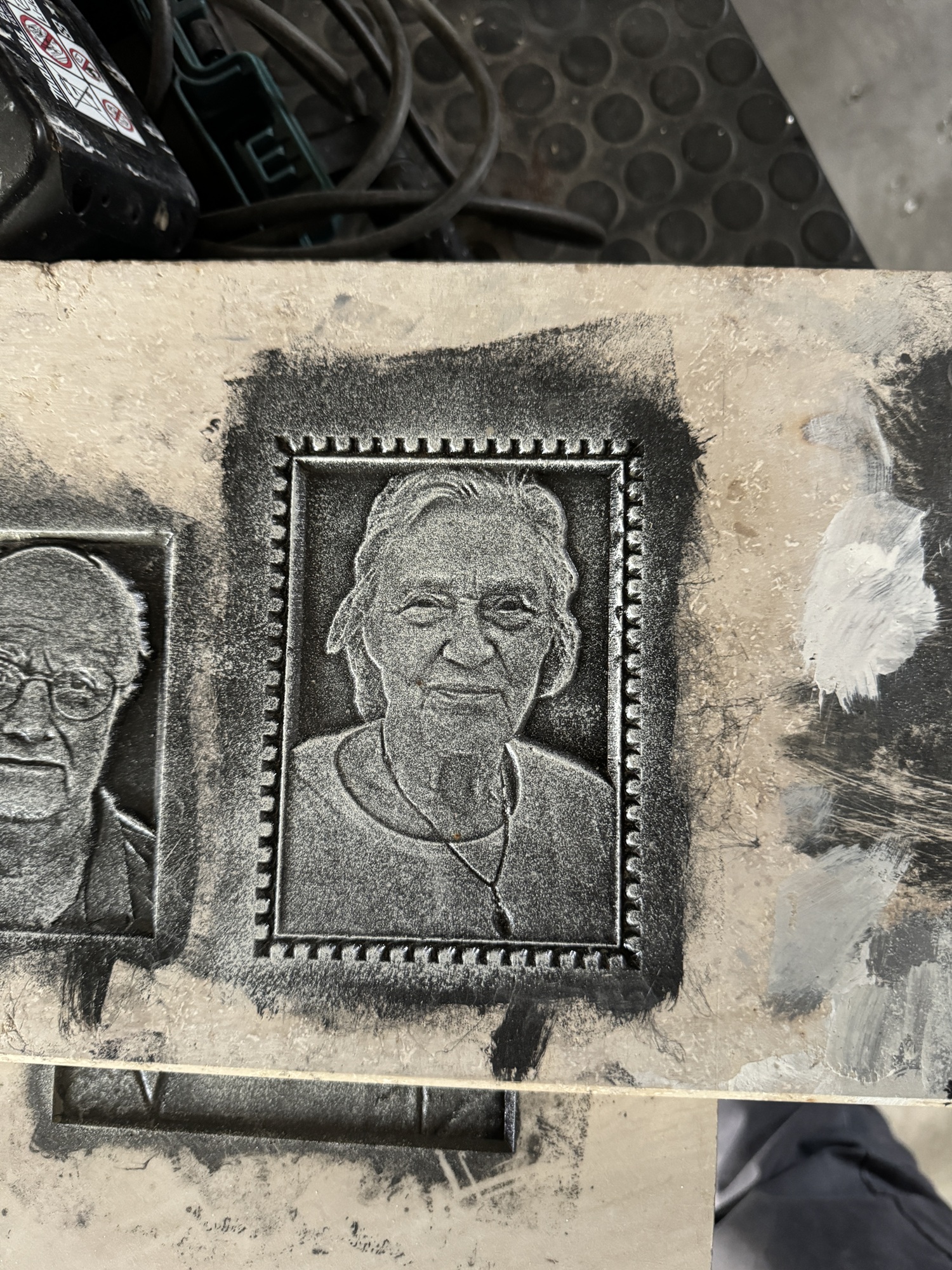

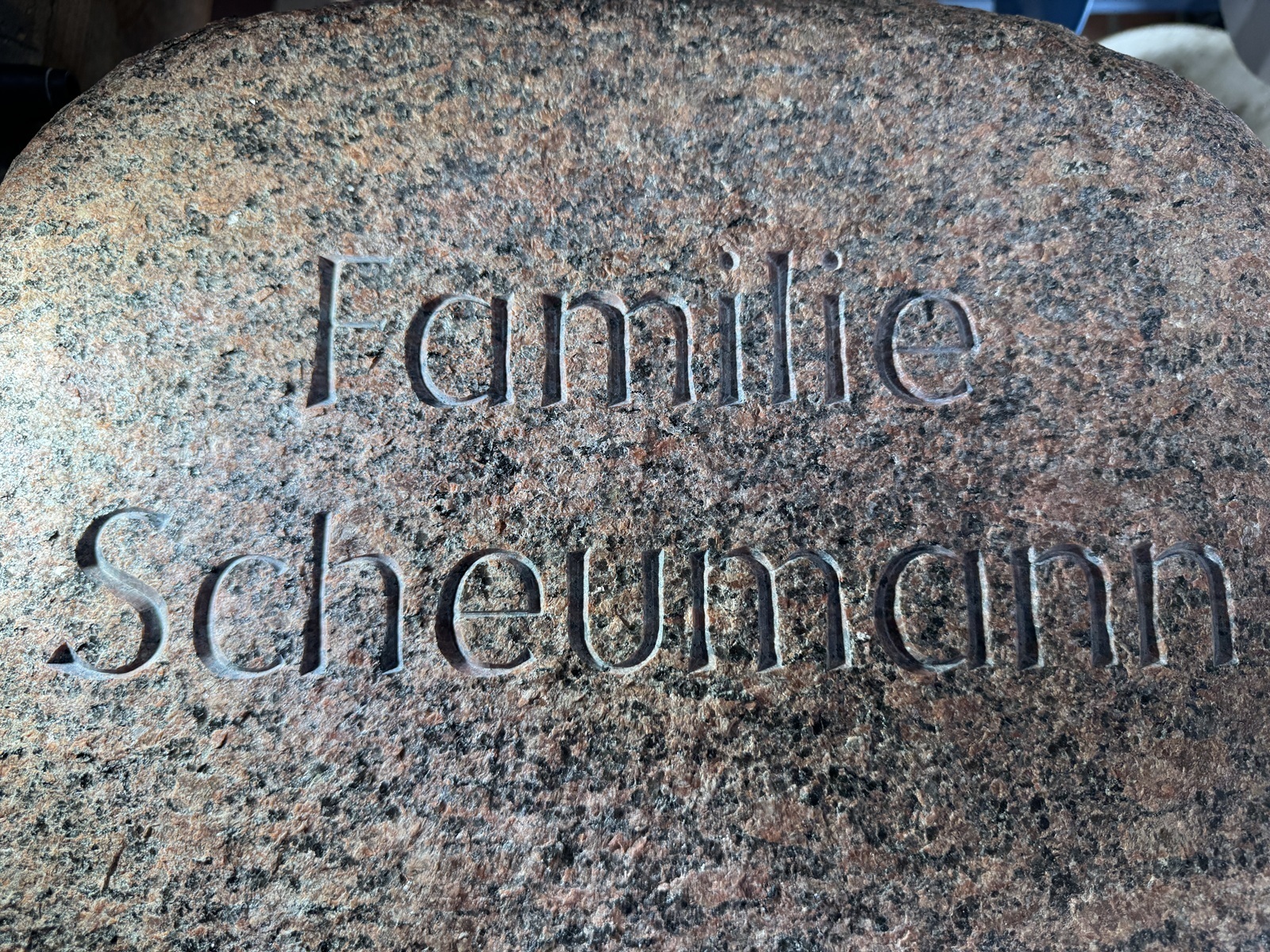

The machine is used for the production of gravestones and memorial stones, but is also well suited for decorative work, signage, reliefs, inlays and custom-made stone details for interior and architectural applications.

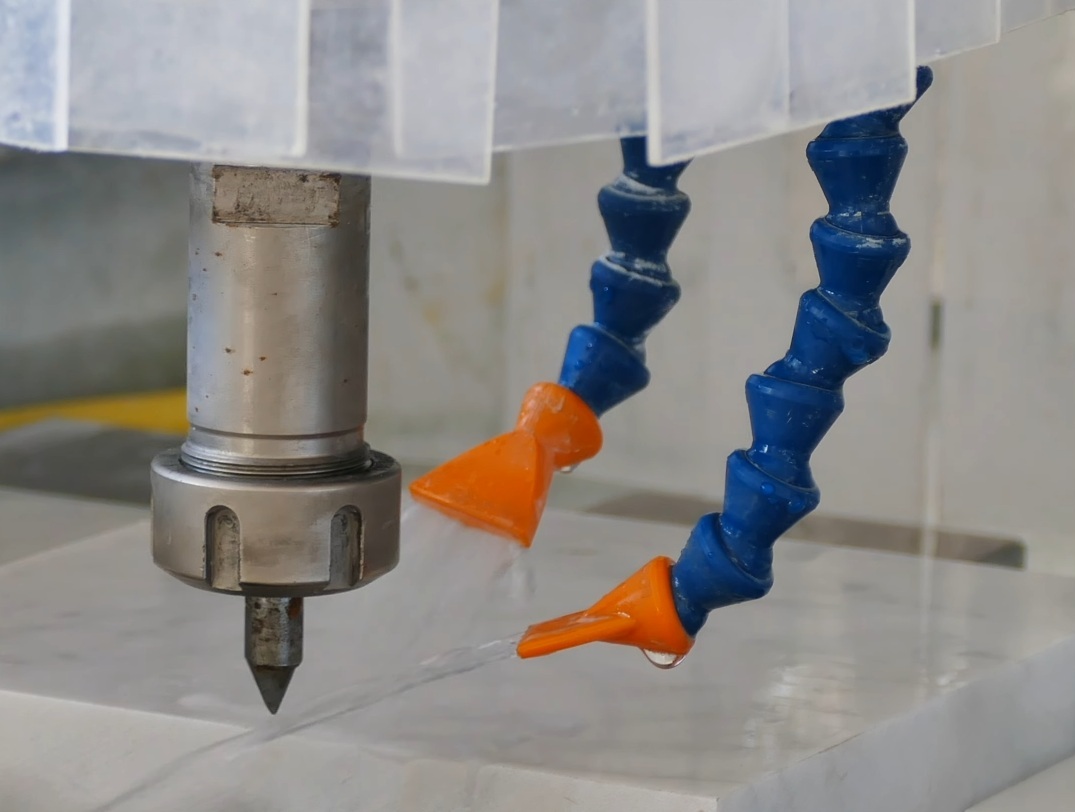

Idea Plus is equipped with a powerful electrospindle with adjustable speed as well as internal and external water cooling of the tool. The compact design makes the machine suitable for small and medium-sized stone workshops looking for a flexible CNC machine for stone engraving and detailed processing.
The included CAD/CAM software makes it possible to work with text, patterns, decorations and simple reliefs directly on the stone. The basic software package includes fonts, motifs and drilling layouts for use in stone processing and engraving.
- Model:
- Cobalm Idea Plus
- Axes:
- 3 interpolated axes, X/Y/Z
- Working area:
- 1300 x 950 x 280 mm
- Spindle speed:
- 500–10,000 rpm
- Spindle power:
- 2,2 / 3,0 kW
- Machine dimensions:
- 2200 x 1850 x 1700 mm
- Weight:
- 950 kg
- Materials:
- Marble, granite, ceramics and natural stone
- Applications:
- Drilling, engraving, inlays and low-relief work
- Tool holder:
- 1/2G, ISO 30 or ISO 40
- Cooling/lubrication:
- Internal and external water cooling/lubrication
