Linear vacuum lifter for glass

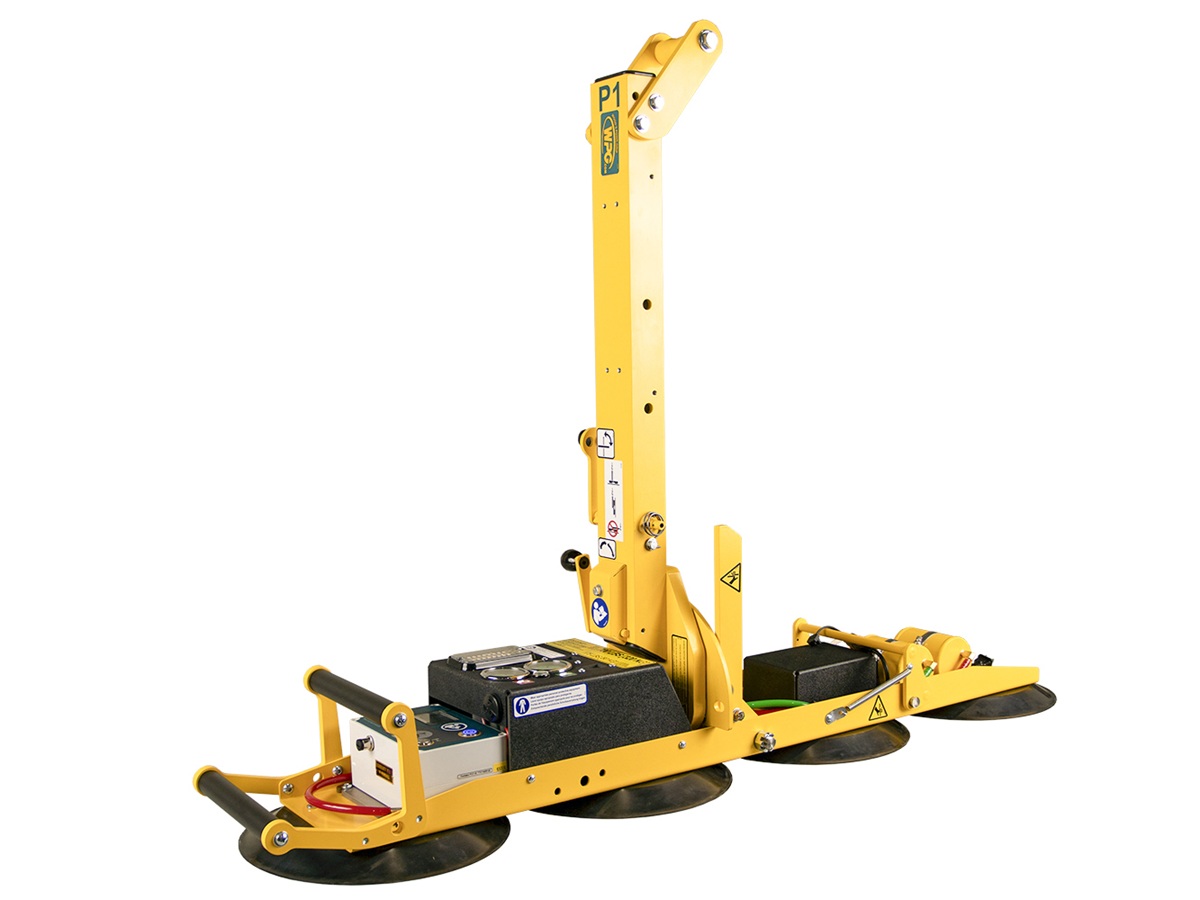

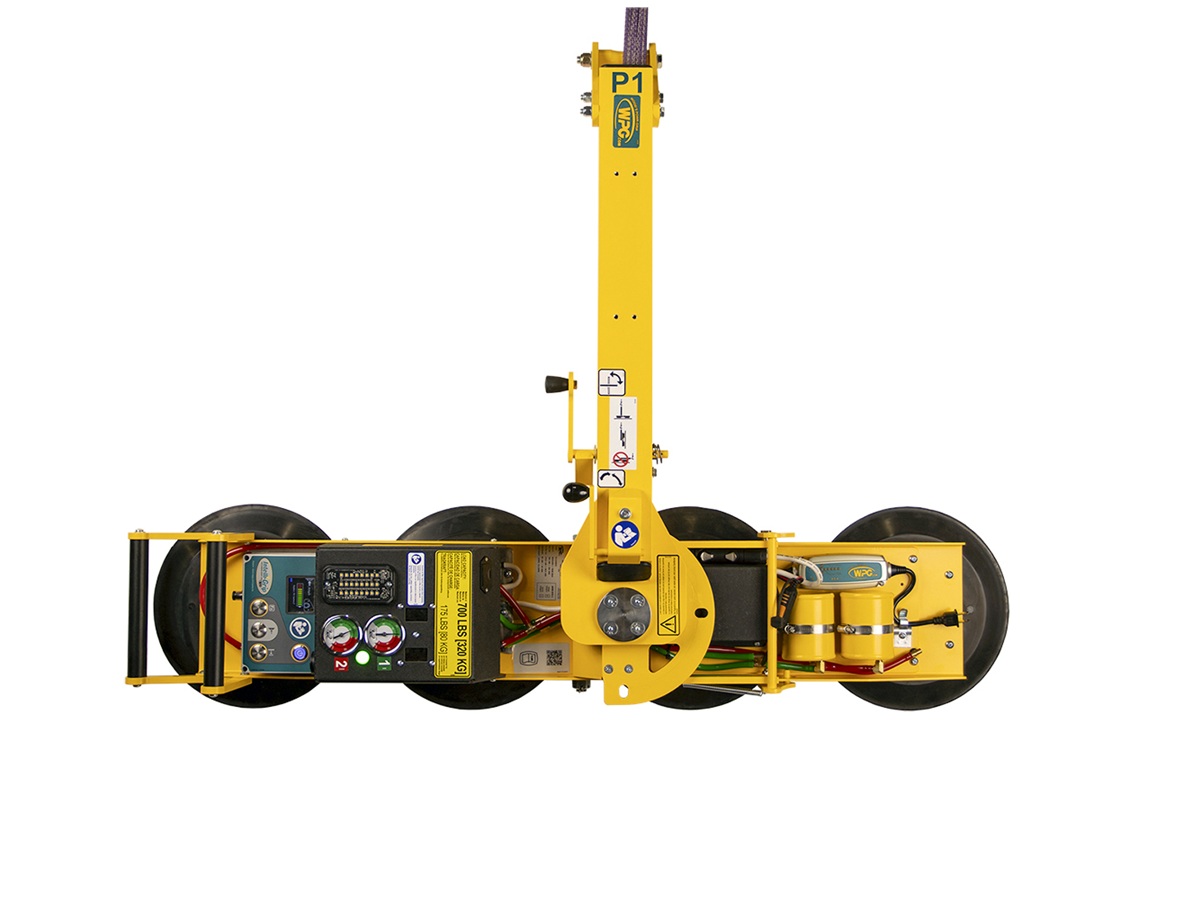

WPG P1-1104DC3 is a linear vacuum lifter developed for safe handling of glass in production and assembly. The model features four suction cups mounted on a compact support beam and is designed for flat, smooth, and non-porous materials. It is well suited for window and facade installation, as well as internal handling in workshops and factories where stable and controlled lifting is required.

In addition to glass, P1-1104DC3 can be used on certain stone materials with a dense and polished surface, such as granite, composite stone (quartz), and other compact, non-porous plates, provided the surface is completely flat and clean. Use on natural stone with open structure, sawn surface, flamed finish, or other rough processing is not recommended without prior assessment of friction and lifting conditions.

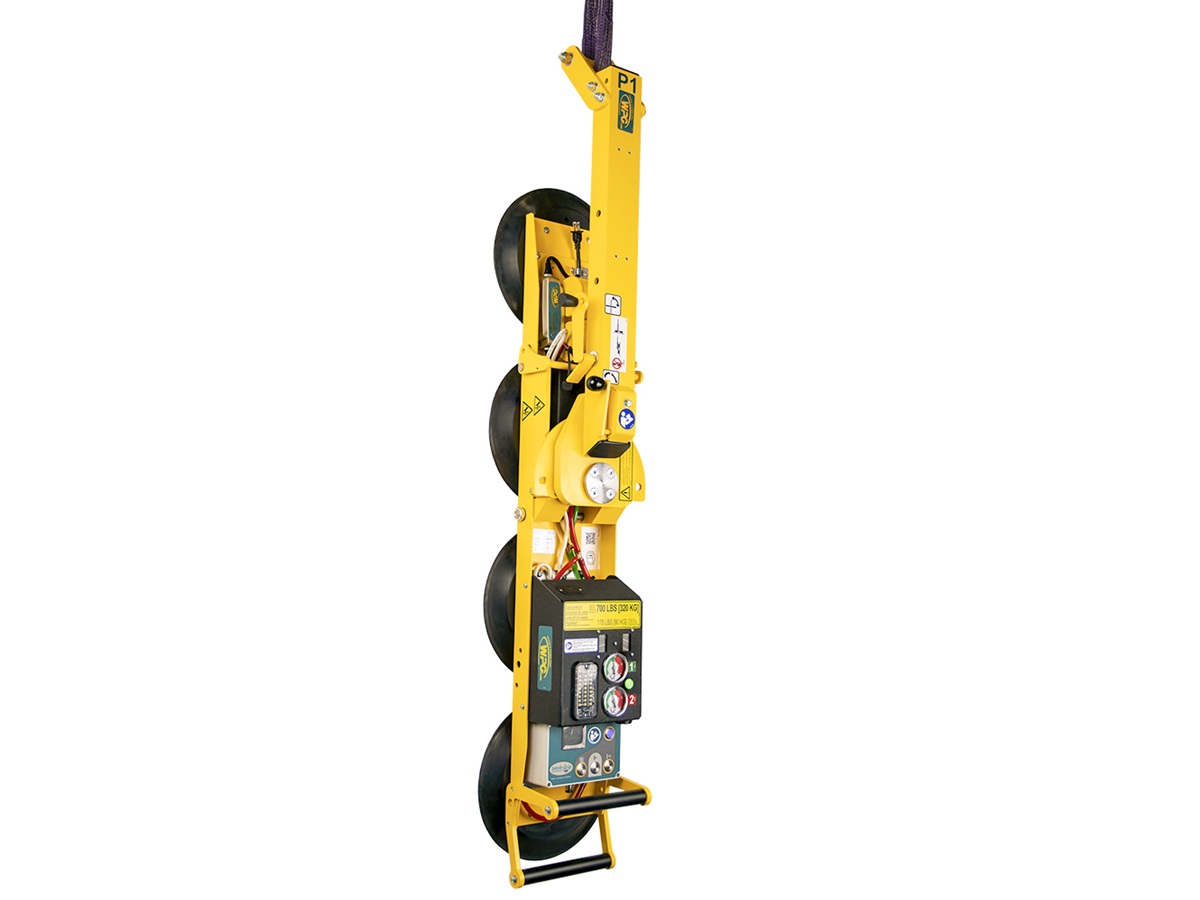

The model offers manual 180° rotation with mechanical locking at each quarter turn, and manual 90° tilt between vertical and horizontal positions. This enables flexible handling in both production and installation.

P1-1104DC3 is equipped with WPG’s Intelli-Grip control system, which continuously monitors vacuum level and power supply. The system includes an LCD display with battery indicator, visual lifting indicator, warning signal, and strobe light in case of deviation, as well as built-in diagnostics. The double, independent vacuum circuit ensures increased safety and stable operation throughout the lifting process.

The lifting capacity is up to 320 kg under proper conditions. The lifter is powered by a 12 V battery system, allowing flexible use without external power supply. The model is developed for professional use in demanding work environments where safety and control are critical.
