Electric vacuum lifter for indoor glass handling (up to 200 kg)

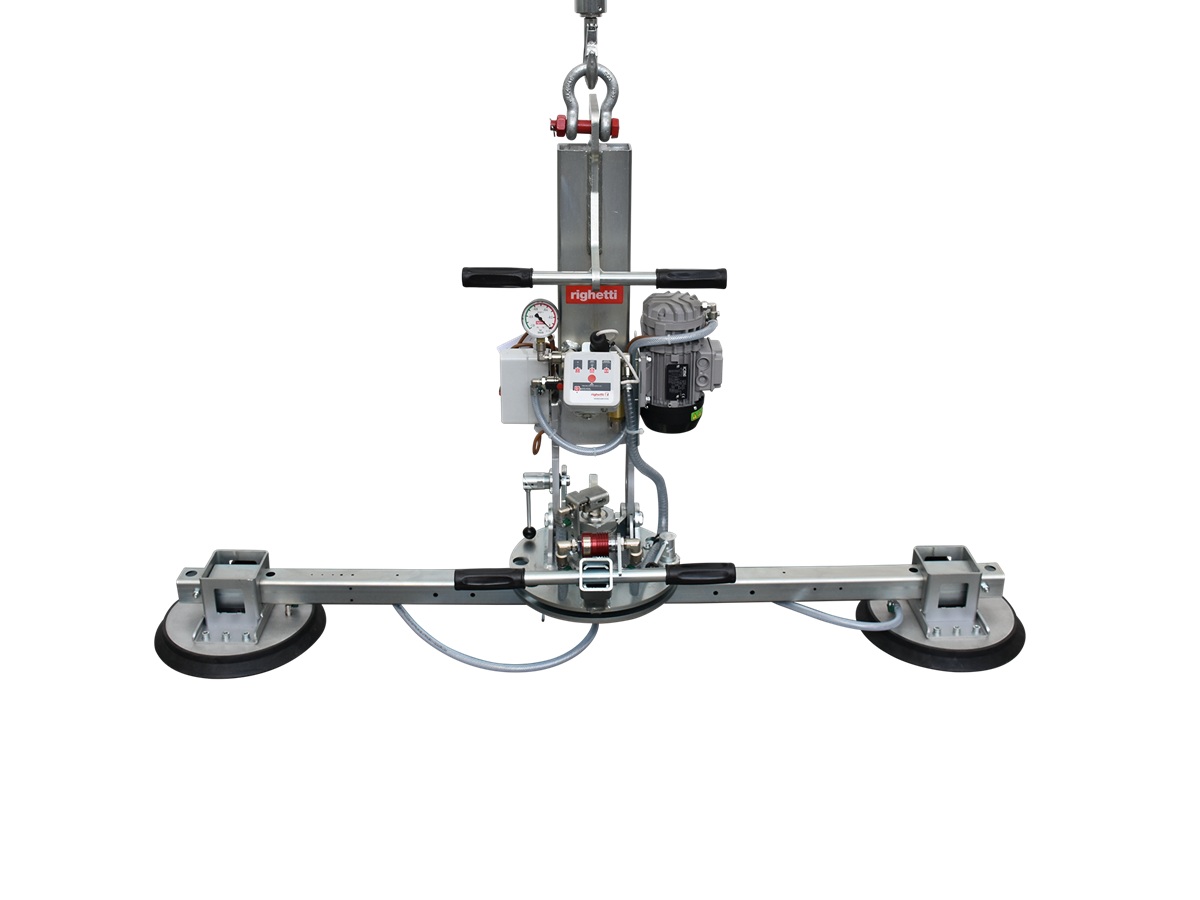

VEB2 RCMBM from Righetti is an electric vacuum lifter for indoor handling of glass sheets and windows. It is developed for use in production, workshops, and assembly areas where stable operation and precise manual control are required.

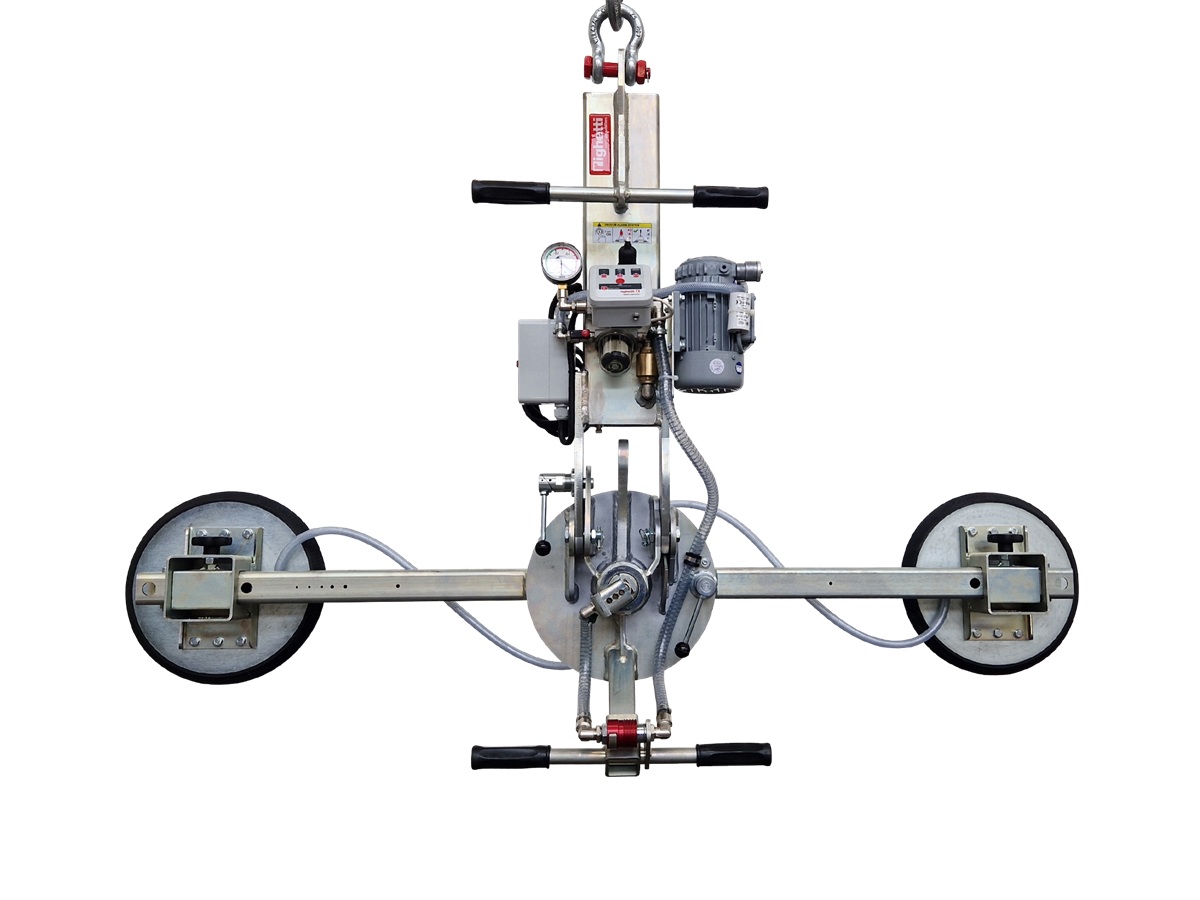

The lifter is equipped with two round suction cups Ø315 mm, mounted on a crossbeam with repositionable suction cups. Standard beam length is 1500 mm. Other lengths are available on request.

VEB2 RCMBM features manual 0–90° tilt and manual 360° continuous rotation with automatic locking in horizontal, vertical, and every 90° position. This ensures controlled positioning of the glass during lifting and installation.

Included as standard:

• Two round suction cups Ø315 mm with safety ring
• Repositionable suction cups on crossbeam
• Manual 0–90° tilt (locking in horizontal and vertical positions)
• Manual 360° continuous rotation (automatic locking every 90°)
• One vacuum circuit with vacuum reserve and check valve
• Acoustic and visual warning system for low vacuum level
• Vacuum gauge with color scale
• Vacuum filter
• Double safety system for load release
• Multi-position lifting hook
• Lowerable suspension solution for mounting of overlights and transom windows

The lifter is electrically powered and delivered as standard for 400V 3-phase or 230V single-phase. Other voltages are available on request. The maximum lifting capacity is 200 kg.

Optional and configuration options:

• Double vacuum circuit according to EN13155
• Suction cups Ø390 mm with lifting capacity up to 300 kg (VEB2 RCMBM d4)
• Alternative beam lengths

VEB2 RCMBM is typically used for indoor handling of glass sheets and windows where ease of operation and reliability are required. For a full overview of technical data and dimensions, refer to the datasheet.
