Battery-powered vacuum lifter for heavy glass sheets up to 1200 kg

VB4+4 RCMBM d4 XL from Righetti is a battery-powered vacuum lifter for handling large and heavy glass sheets on construction sites and during installation. The model is developed for demanding lifting operations where high lifting capacity, stability, and flexibility are required.

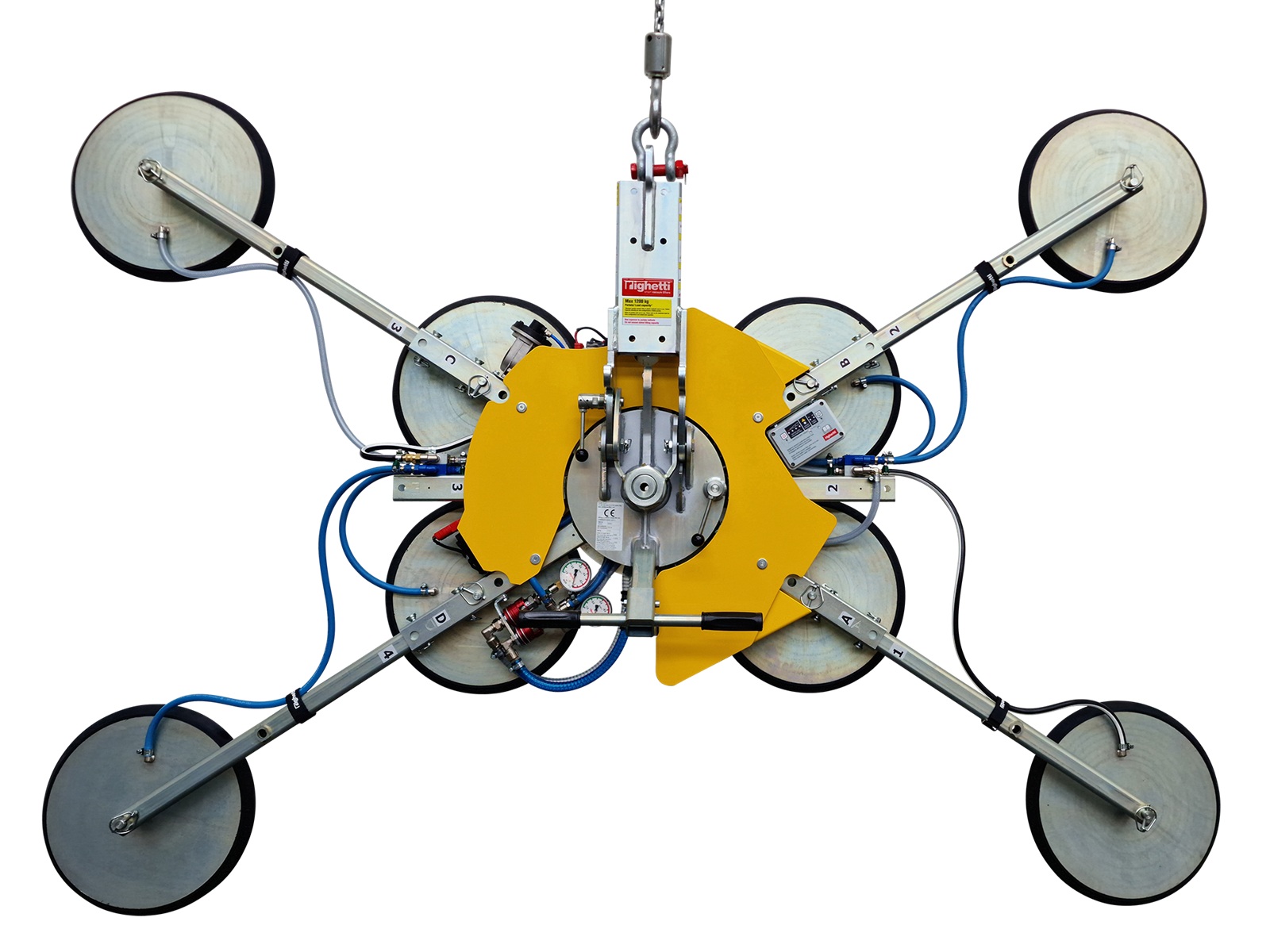

The lifter is equipped with eight round suction cups with a diameter of 390 mm. Four suction cups are mounted centrally on the frame, while four are placed on removable arms. Depending on the setup, the lifter can be configured with 2, 4, 6, or 8 suction cups, providing a lifting capacity from 300 kg up to 1200 kg.

VB4+4 RCMBM d4 XL is designed for both horizontal and vertical handling. It features manual 0–90° tilt and manual 360° continuous rotation, with automatic locking every 90°. This ensures controlled handling and precise positioning of the glass during installation.

The lifter is powered by built-in, high-capacity batteries that can be easily removed and charged (external charger included). It is equipped with two independent vacuum circuits, each with a vacuum tank and non-return valve, and meets the requirements for use on construction sites.

Included as standard:

• Eight round suction cups Ø390 mm with double safety ring
• Four suction cups on fixed frame and four on removable arms
• Manual 0–90° tilt with locking in horizontal and vertical positions
• Manual 360° continuous rotation with automatic locking every 90°
• Two independent vacuum circuits with vacuum tanks and non-return valves
• Vacuum control unit with acoustic and visual warning for low vacuum level
• Vacuum gauge for each circuit with color scale
• Built-in rechargeable batteries with charge status indicator
• 240 V battery charger
• Double safety system for load release

Options and configuration possibilities:

• Alternative configurations and arm setups for different glass formats
• Wireless remote control
• Controlled tilt unit
• Suction cups for structured glass
• Protective covers for suction cups
• Spacer solutions for deep window frames
• Suction cup sets for curved glass (concave and convex)
• Transport and parking stands (with or without wheels)

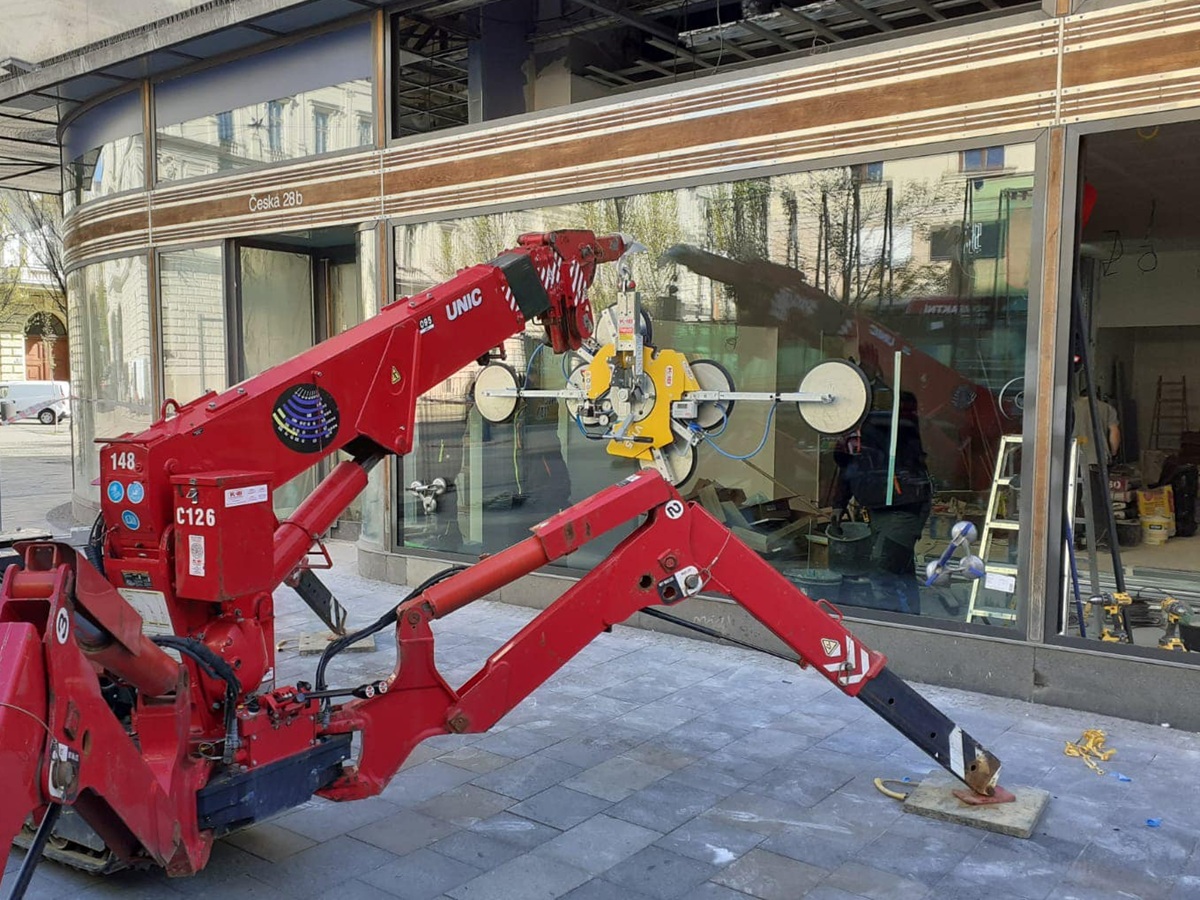

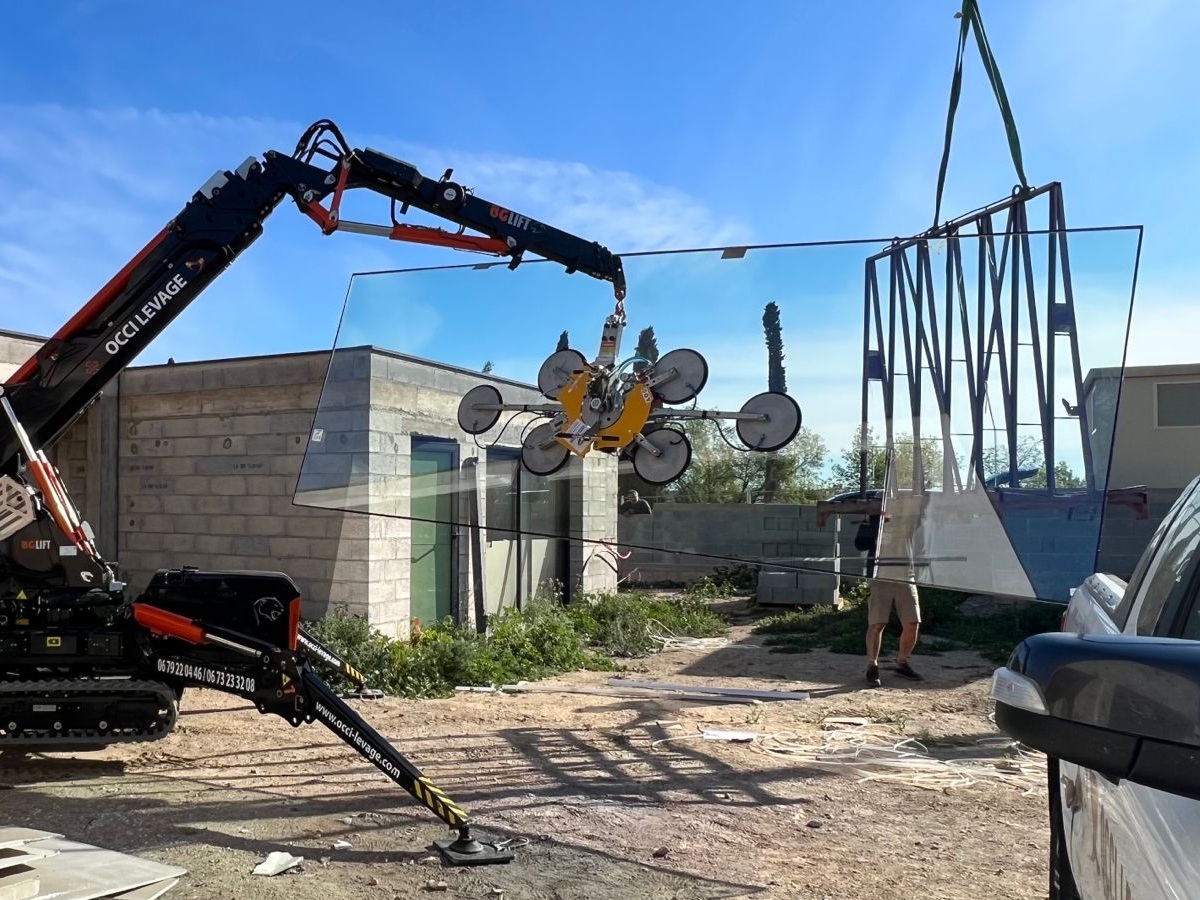

VB4+4 RCMBM d4 XL is typically used for mounting large glass facades, window sections, and heavy glass panels. For a complete overview of configurations, technical specifications, and accessories, see the datasheet.
