Battery-powered vacuum lifter for curved glass – concave and convex

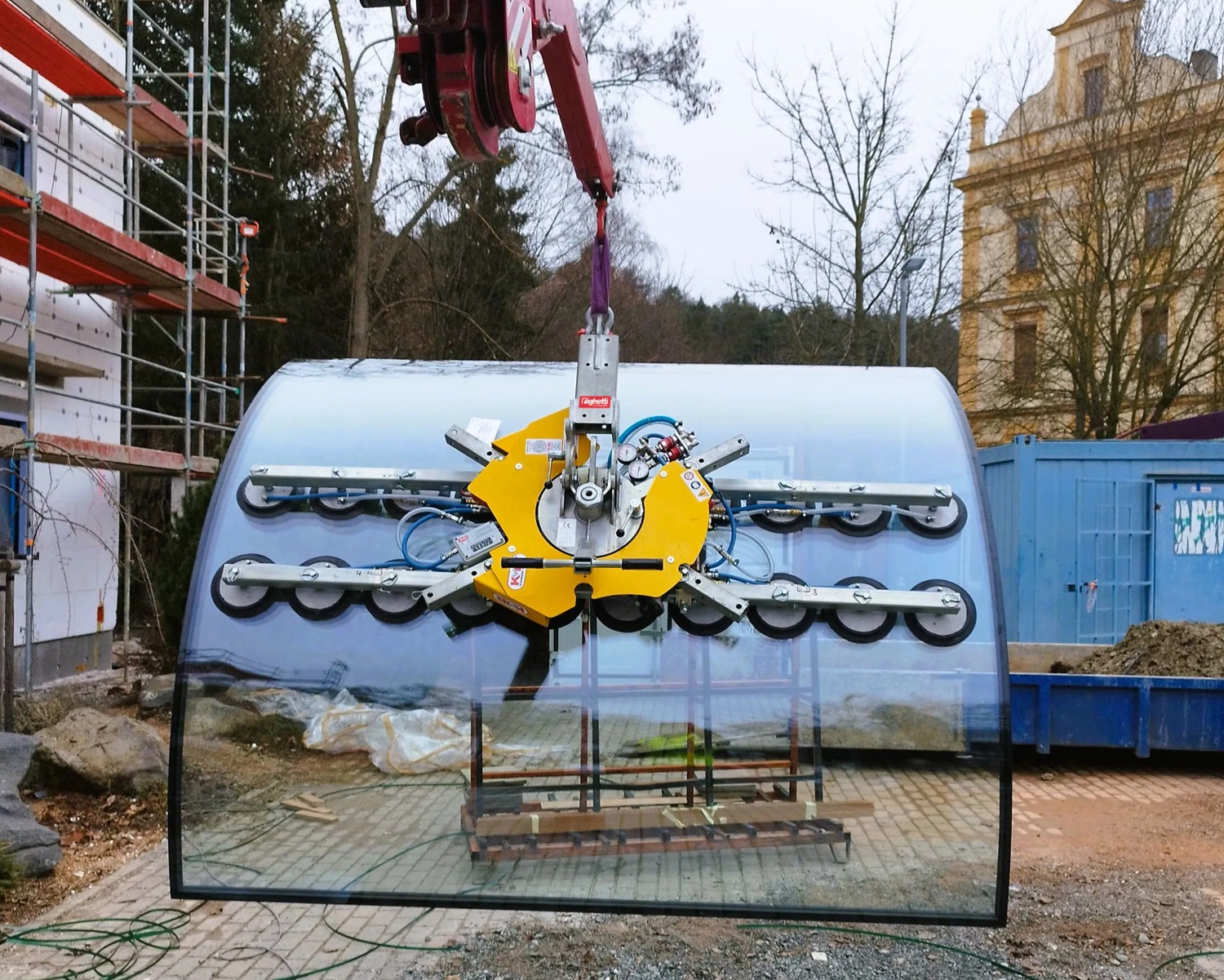

VB-CG from Righetti is a battery-powered vacuum lifter specifically developed for handling curved glass panels – both concave and convex. The lifter is typically used for installation of facade glass, special glass, and architectural glass solutions on construction sites and during installation.

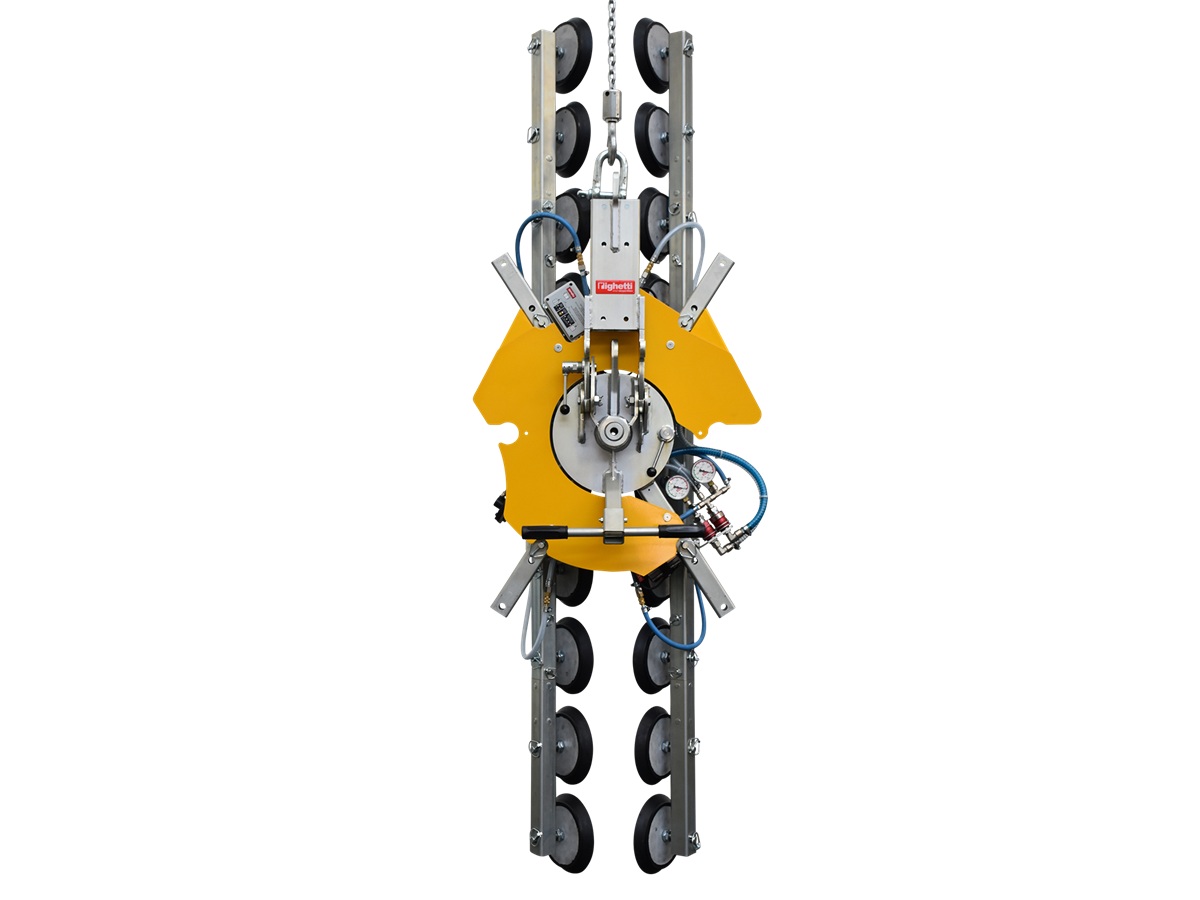

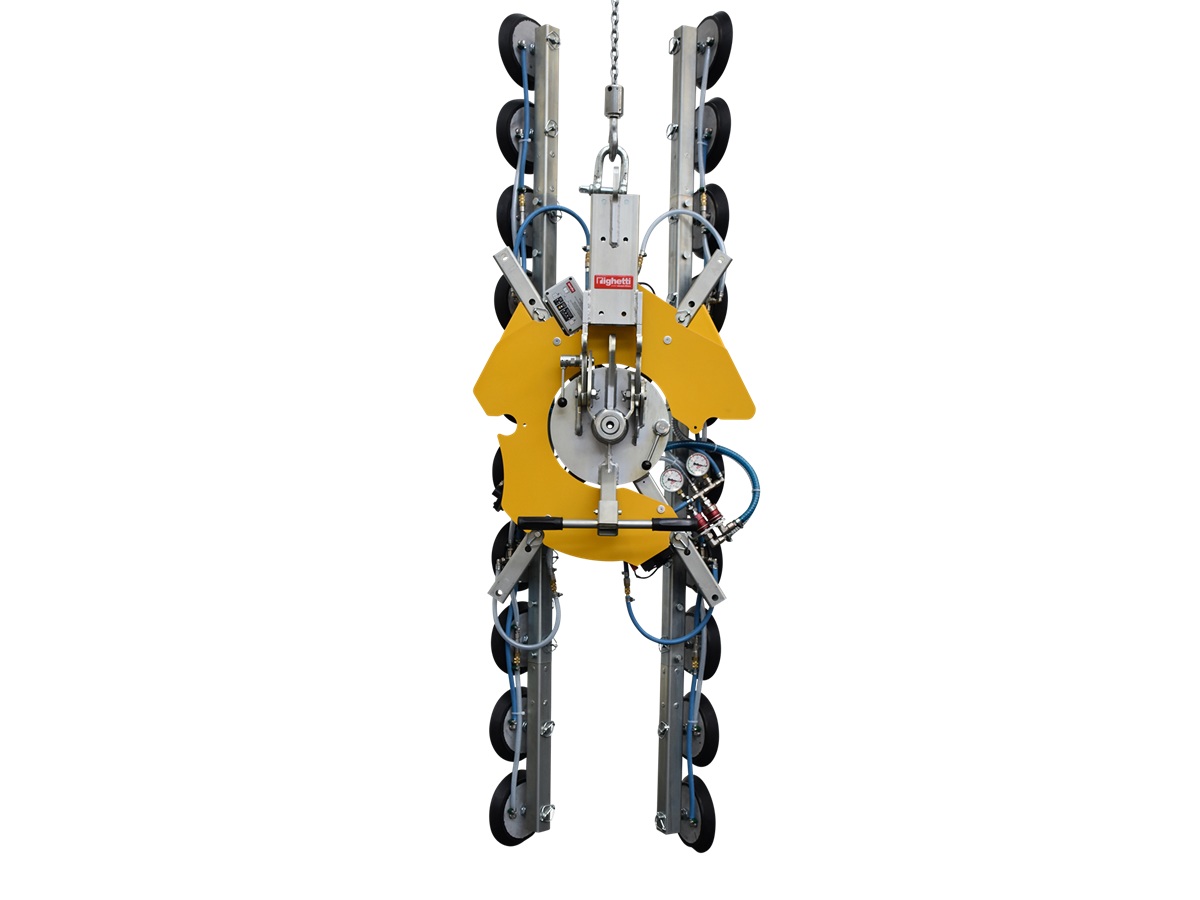

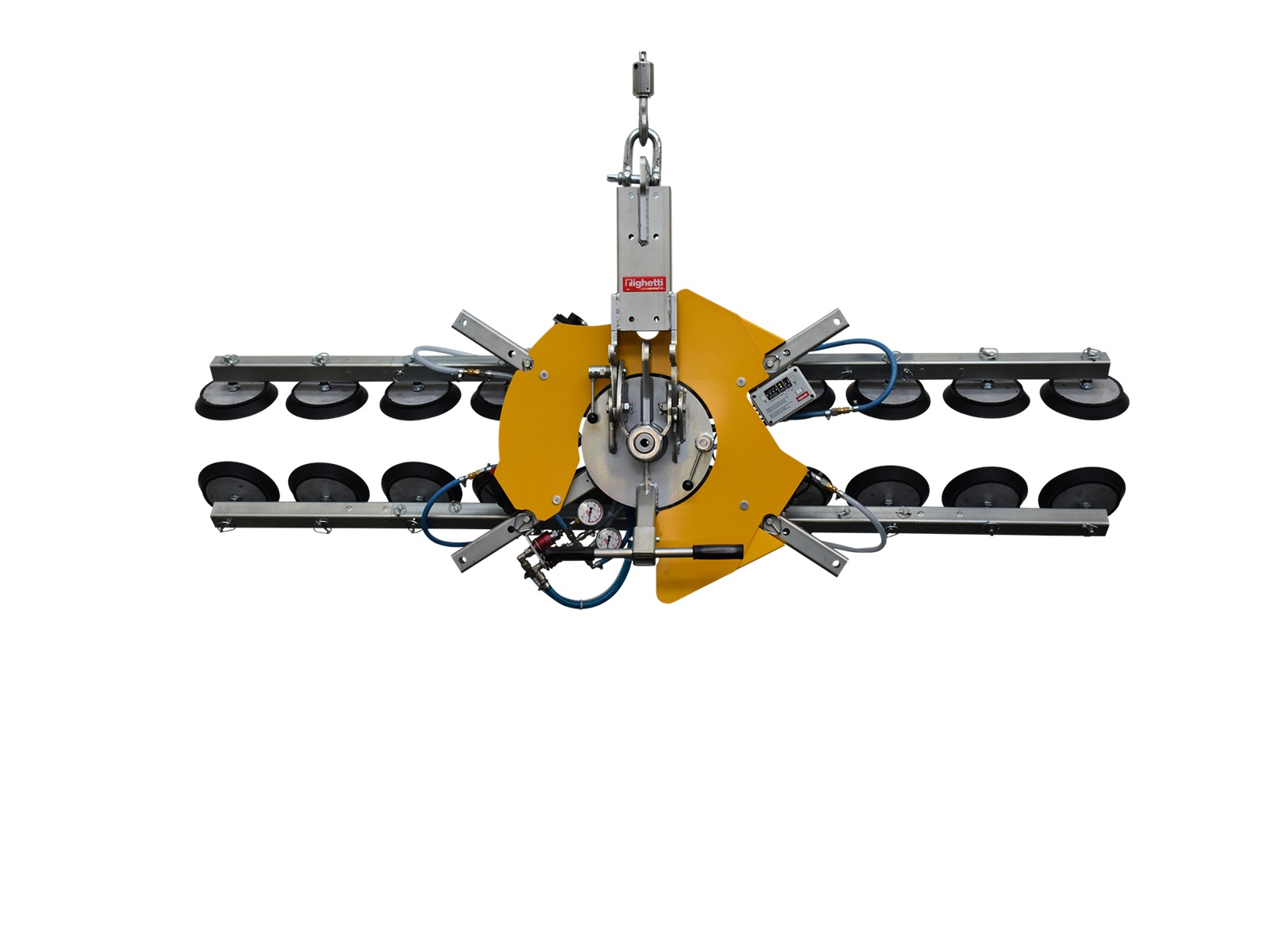

The lifter can be configured with 12, 16, or 20 round suction cups with a diameter of 200 mm. The suction cups are mounted on repositionable arms and equipped with special joints that allow adaptation to the curvature of the glass. Depending on the configuration, the lifter provides a lifting capacity from 400 kg up to 600 kg.

VB-CG is developed for use on construction sites and is powered by built-in rechargeable batteries. The lifter features manual 360° continuous rotation with automatic locking every 90°, as well as 0–90° manual tilt with locking in horizontal and vertical positions.

Included as standard:

• Configuration with 12, 16, or 20 round suction cups Ø200 mm
• Repositionable suction cup arms in two positions
• Suction cups with special joints for concave and convex glass
• Manual 360° continuous rotation (automatic locking every 90°)
• Manual 0–90° tilt (locking in horizontal and vertical positions)
• Two independent vacuum circuits with vacuum reserve and non-return valve
• Smart vacuum control unit
• Audible and visual warning at low vacuum level
• Vacuum gauge for each vacuum circuit
• Vacuum filter
• Built-in rechargeable batteries with battery status indicator
• 240 V battery charger

Optional and configuration options:

• Extra suction cup set for increased lifting capacity up to 600 kg
• Remote control for vacuum control and load release
• Transport and parking stand

VB-CG is developed for professional use on construction sites. For a full overview of technical data, configurations, and accessories, refer to the datasheet.
