Pneumatic vacuum lifter for indoor glass handling (up to 200 kg)

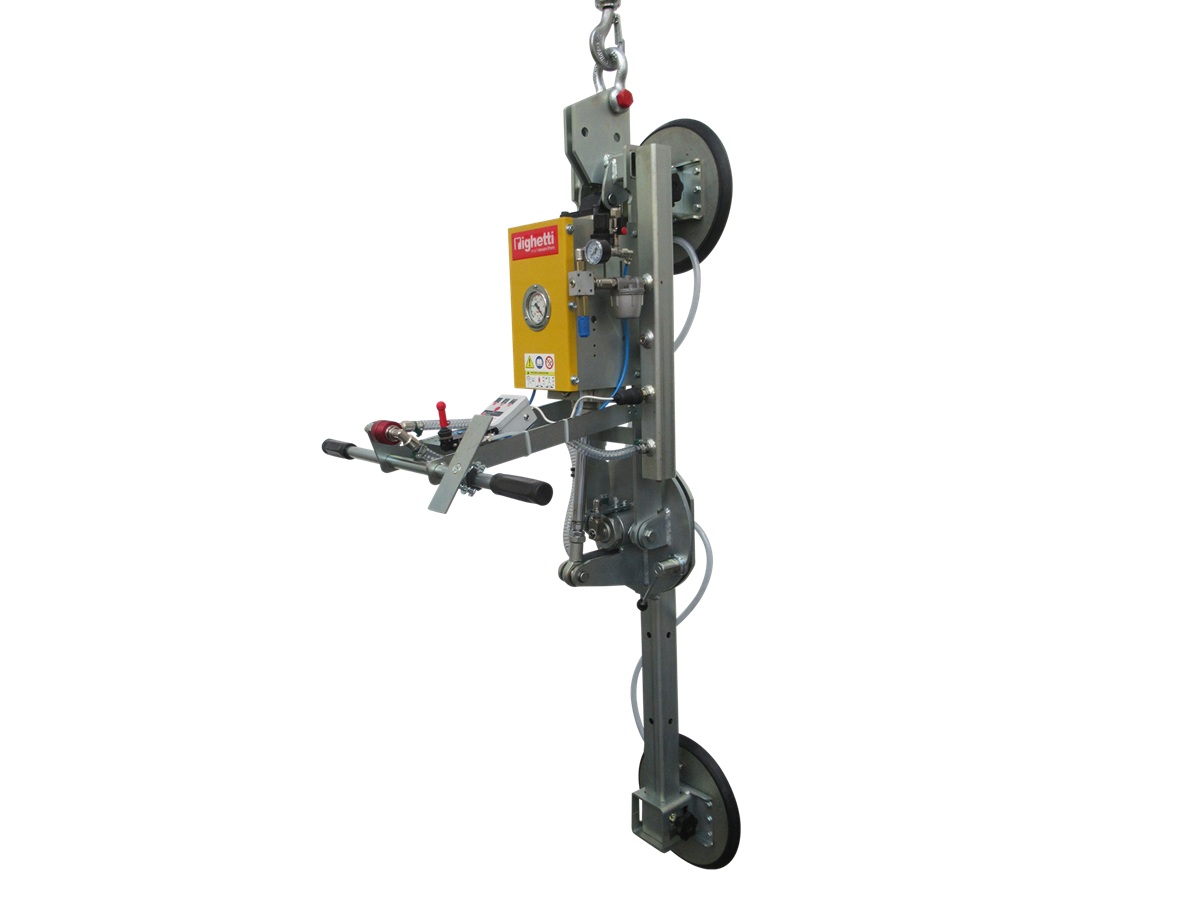

VA2 RCMBP from Righetti is a pneumatic vacuum lifter for indoor use, developed for safe handling of glass sheets, windows, and smaller glass panels in production, workshops, and assembly areas. The lifter is air-powered and well suited for environments with fixed access to compressed air.

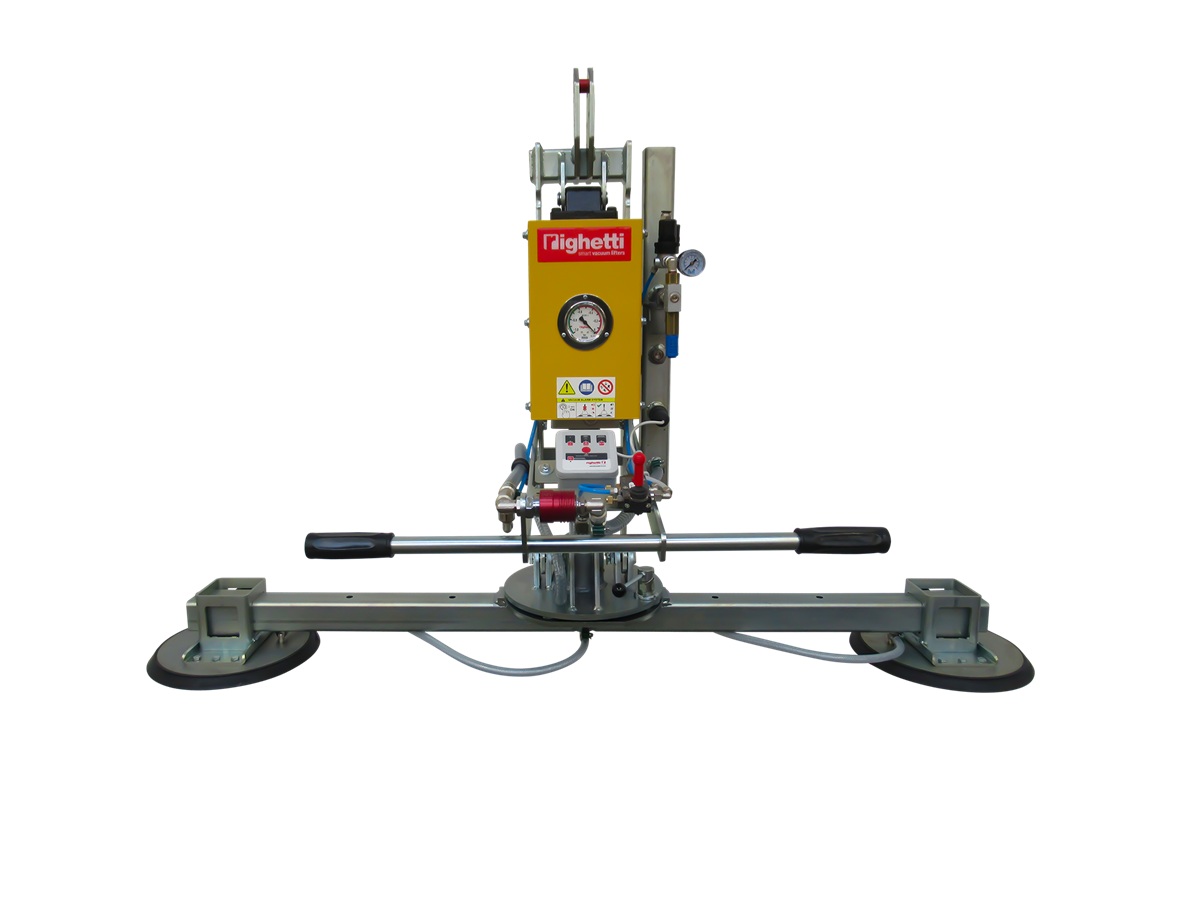

The lifter is equipped with two round suction cups with a diameter of 310 mm, mounted on a central beam where the suction cups can be repositioned as needed. The standard beam length is 1500 mm, but other lengths are available on request.

VA2 RCMBP features pneumatic 0–90° tilt, controlled via joystick on the lifter’s handle. In addition, it has manual 360° rotation with automatic locking every 90°, ensuring safe and controlled positioning of the glass during handling.

Included as standard:

• Two round suction cups Ø310 mm with safety ring
• Repositionable suction cups on central beam
• Pneumatic 0–90° tilt controlled via joystick
• Manual 360° rotation with automatic locking every 90°
• One vacuum circuit with vacuum reserve and non-return valve
• Acoustic and visual warning system for low vacuum level
• Vacuum gauge with color scale
• Vacuum filter for dust and condensation
• Double safety system for load release

The lifter is operated via a manual on/off valve on the frame and requires external connection to compressed air. The maximum lifting capacity is 200 kg.

VA2 RCMBP is typically used for indoor handling of glass sheets, windows, and smaller glass panels where precise control and stable operation are important. For a full overview of technical data and specifications, refer to the datasheet.
