Linear vacuum lifters for glass

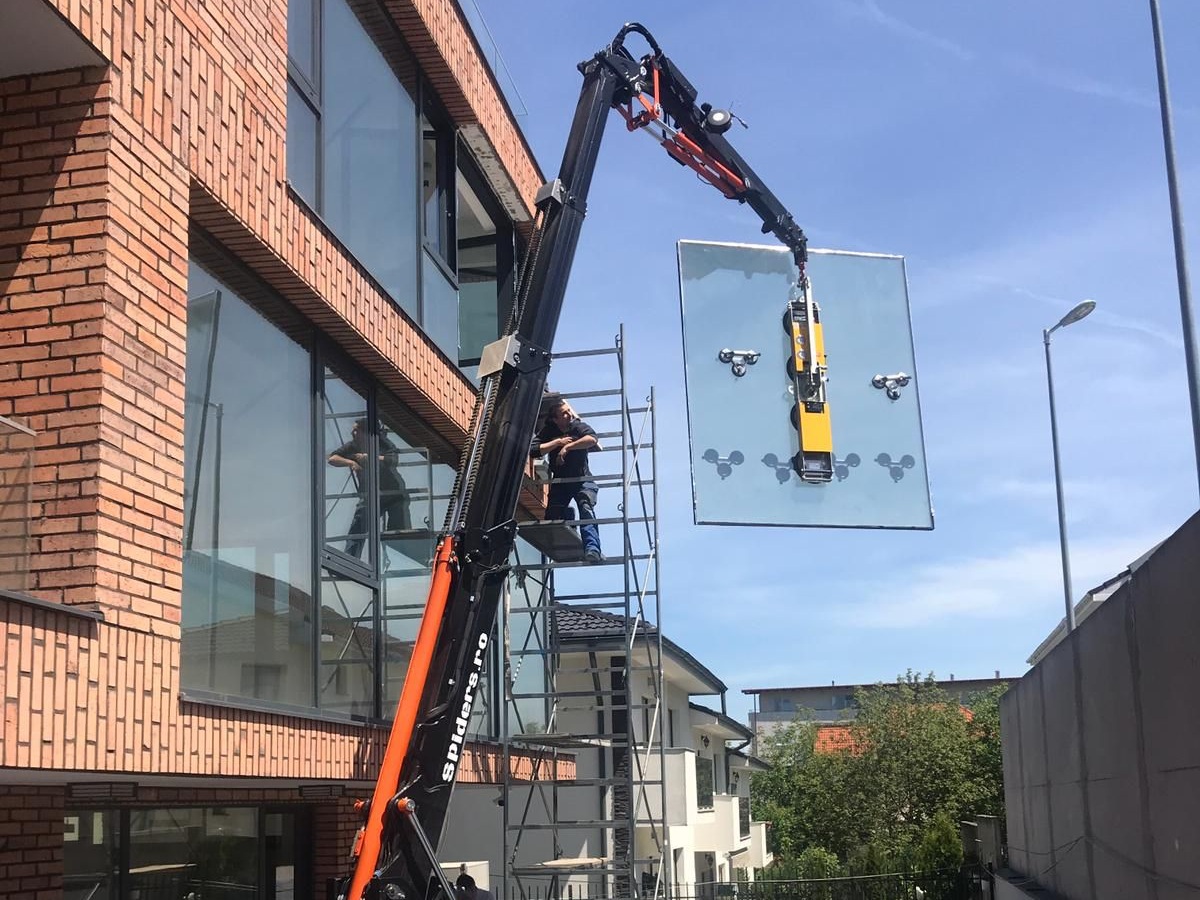

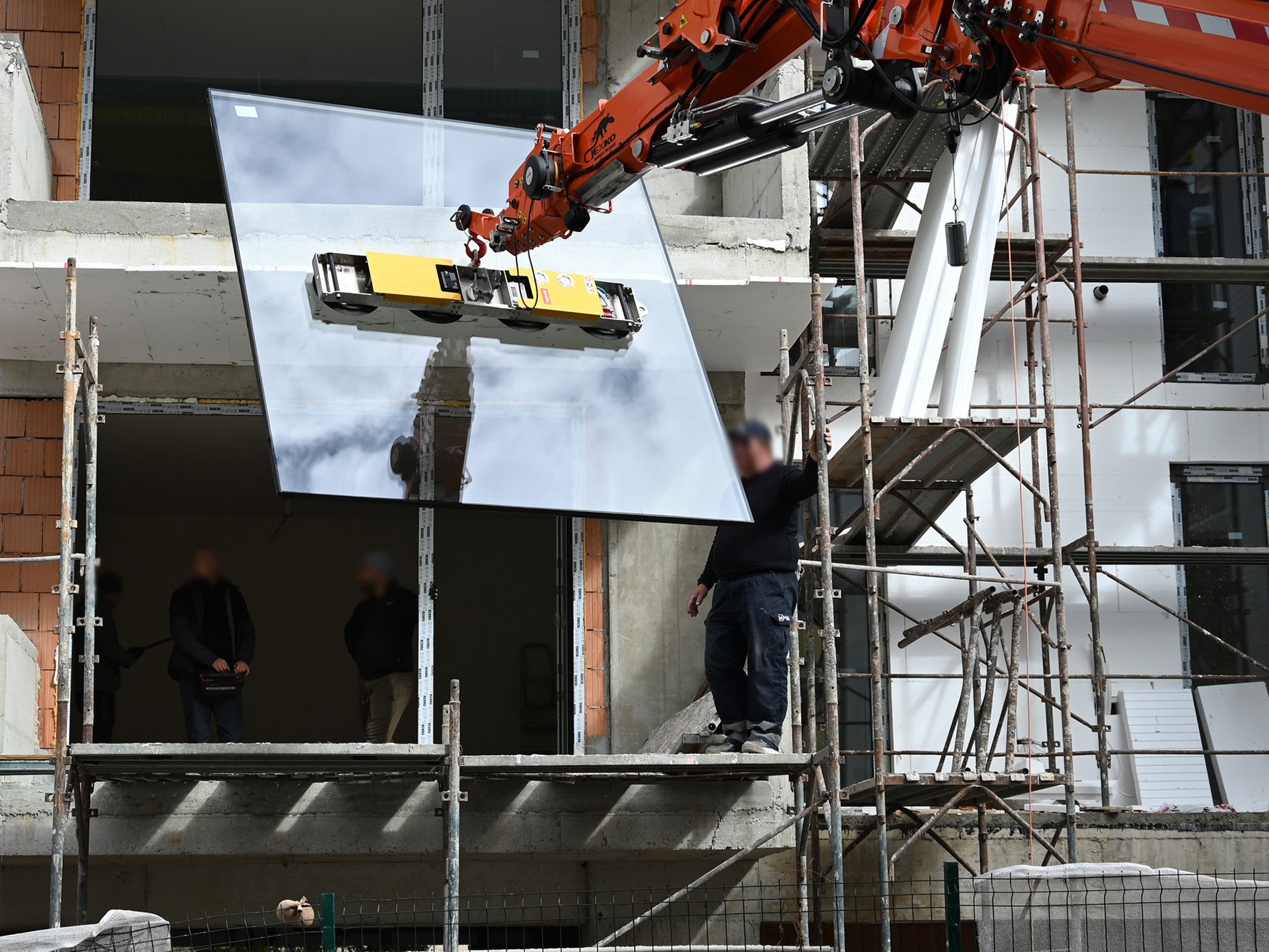

Linear series from Righetti consists of vacuum lifters developed for handling long and narrow glass sheets, where even support across the entire surface is required. The series is typically used for facade glass, window bands, and other large-format glass elements.

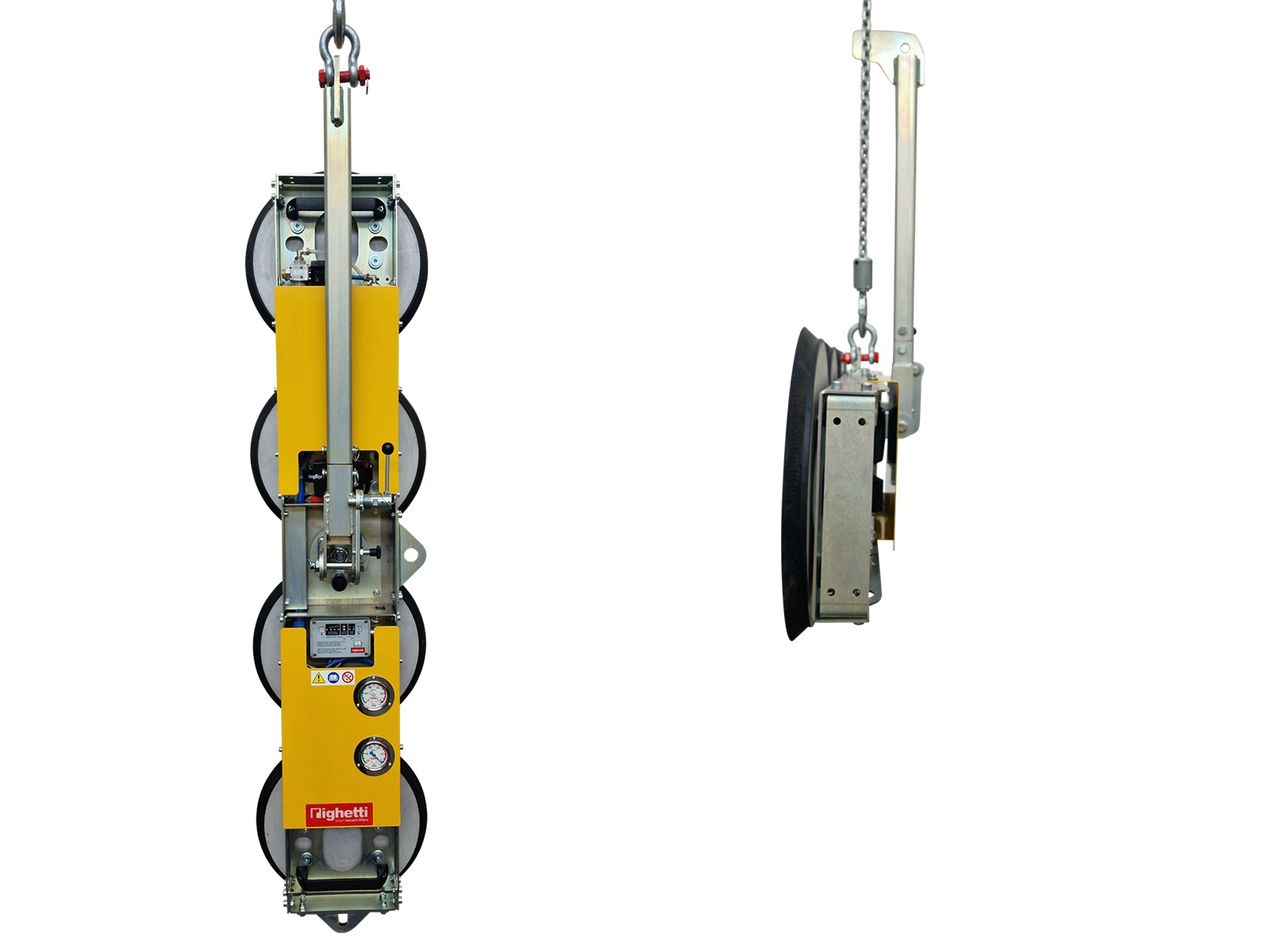

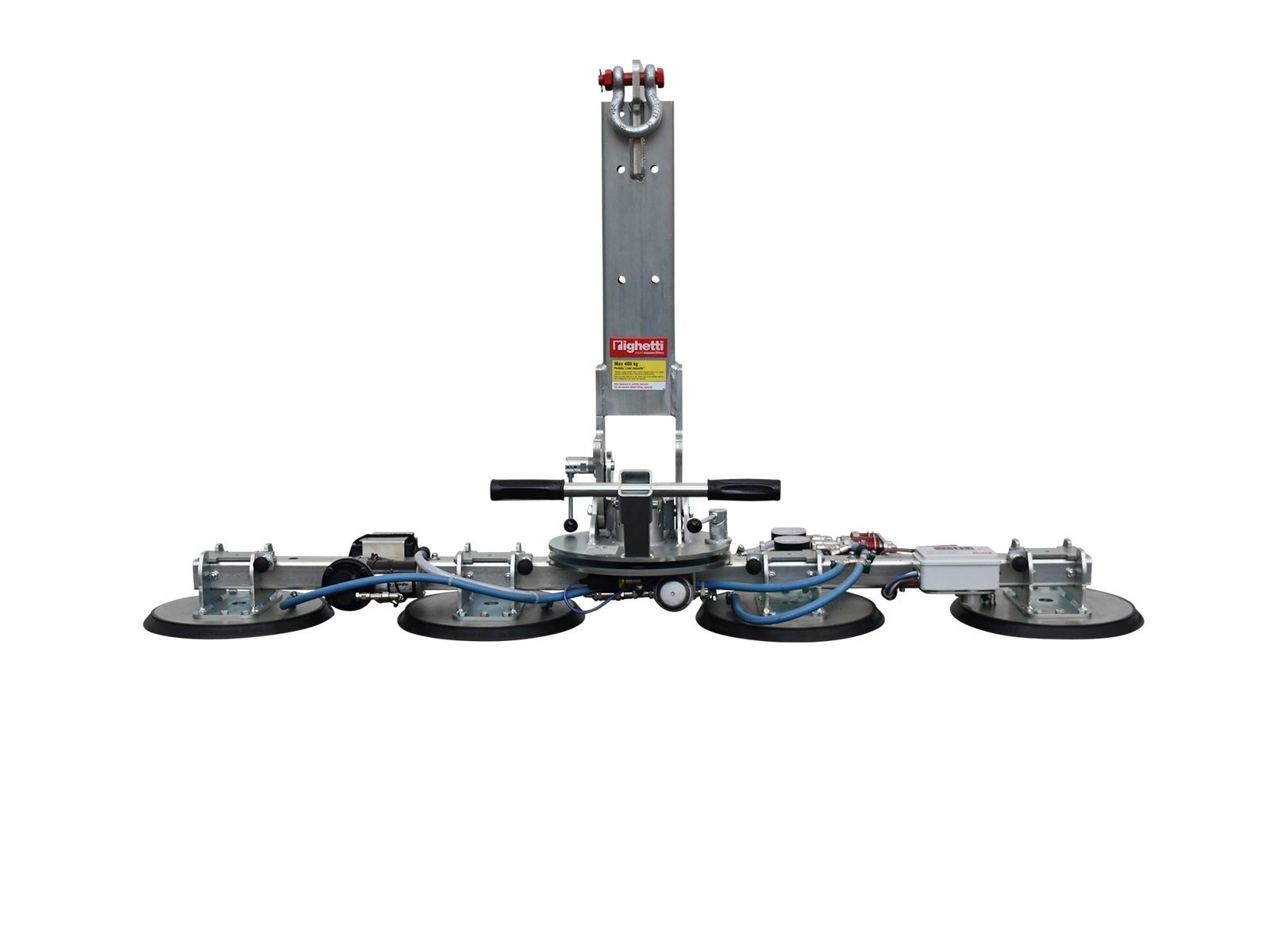

The lifters are built around a straight, linear beam with multiple suction cups distributed along the length. This ensures stable grip and reduces point load compared to compact vacuum lifters.

Depending on model and configuration, Linear series can be delivered with pneumatic, electric, or battery-powered vacuum systems. The lifters are suitable for both horizontal and vertical handling, and can be equipped with manual, pneumatic, or electric tilt and rotation.

Technical features:

• Linear beam construction adapted to long glass formats
• Suction cups distributed along the entire lifting beam
• Single or double vacuum circuit, depending on configuration
• Suitable for indoor use and on-site assembly

Lifting capacity and dimensioning:

• Typical lifting capacity from approx. 400 to 600 kg, depending on model and configuration
• Capacity depends on beam length, number and diameter of suction cups, and the vacuum system
• Can be adapted for both light glass sheets and long, heavy facade elements

Linear series covers a wide range of glass formats and is used where standard vacuum lifters do not provide sufficient support. Model selection should be based on glass size, weight, and working environment.

Detailed specifications and capacity are provided for each model.
