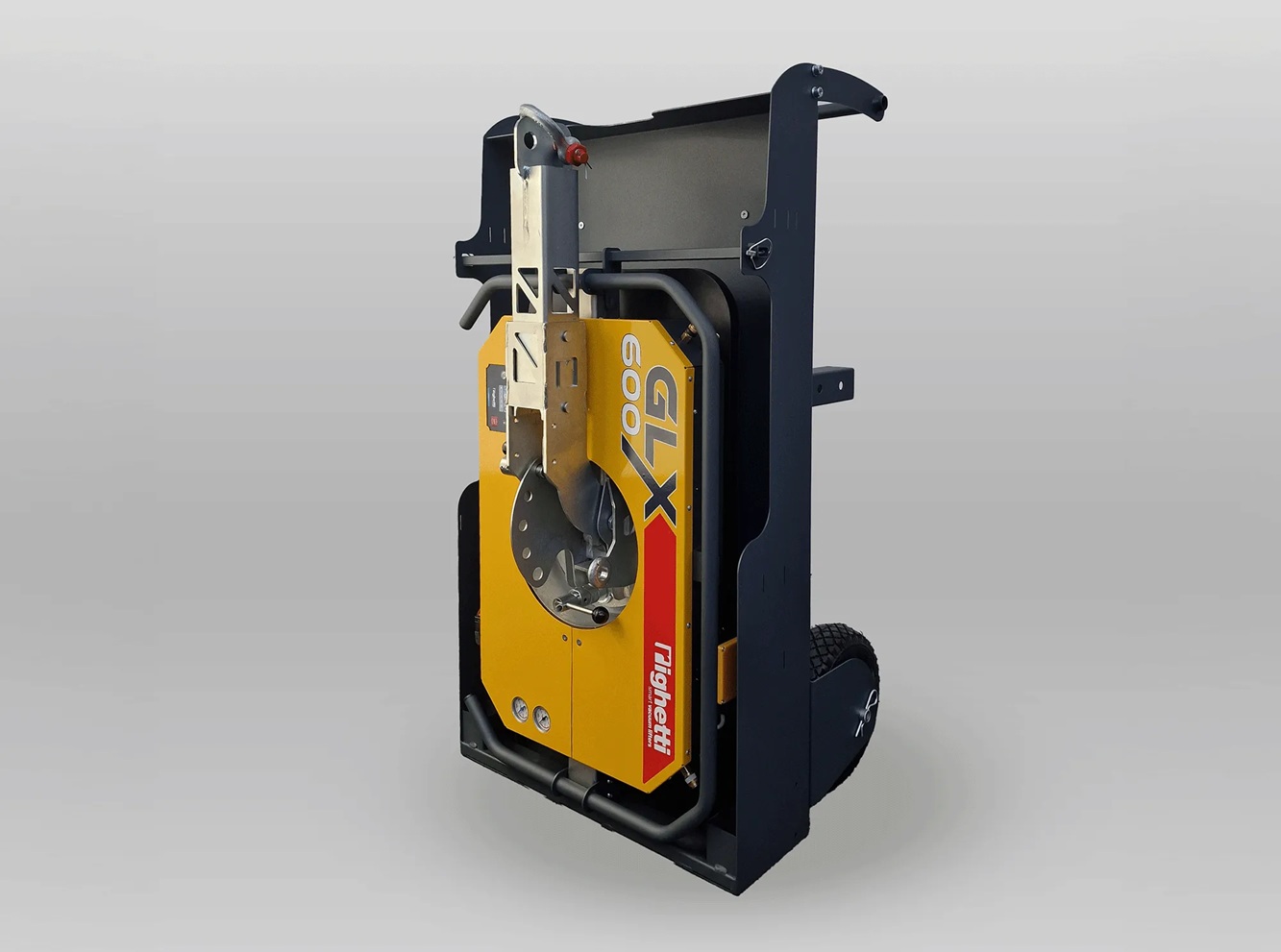

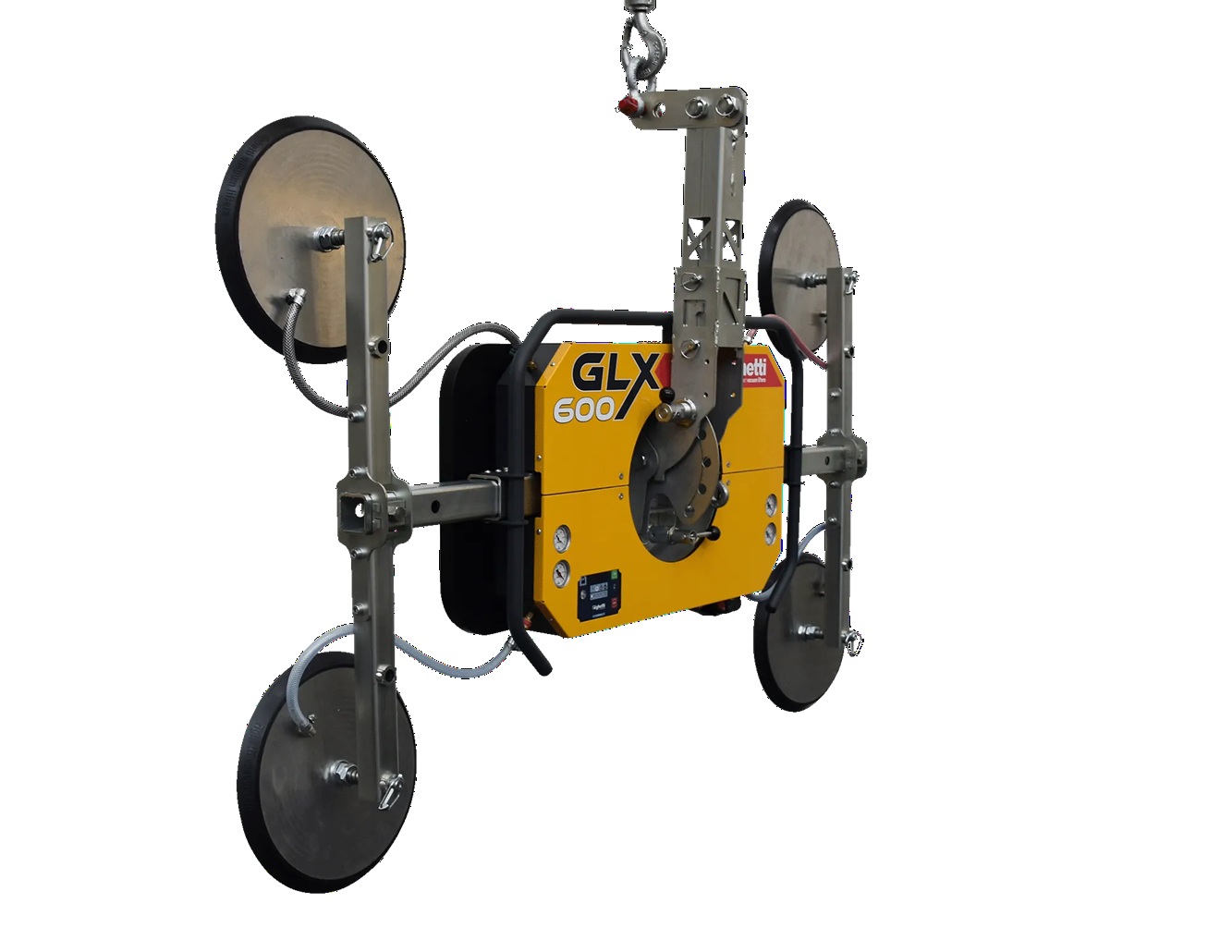

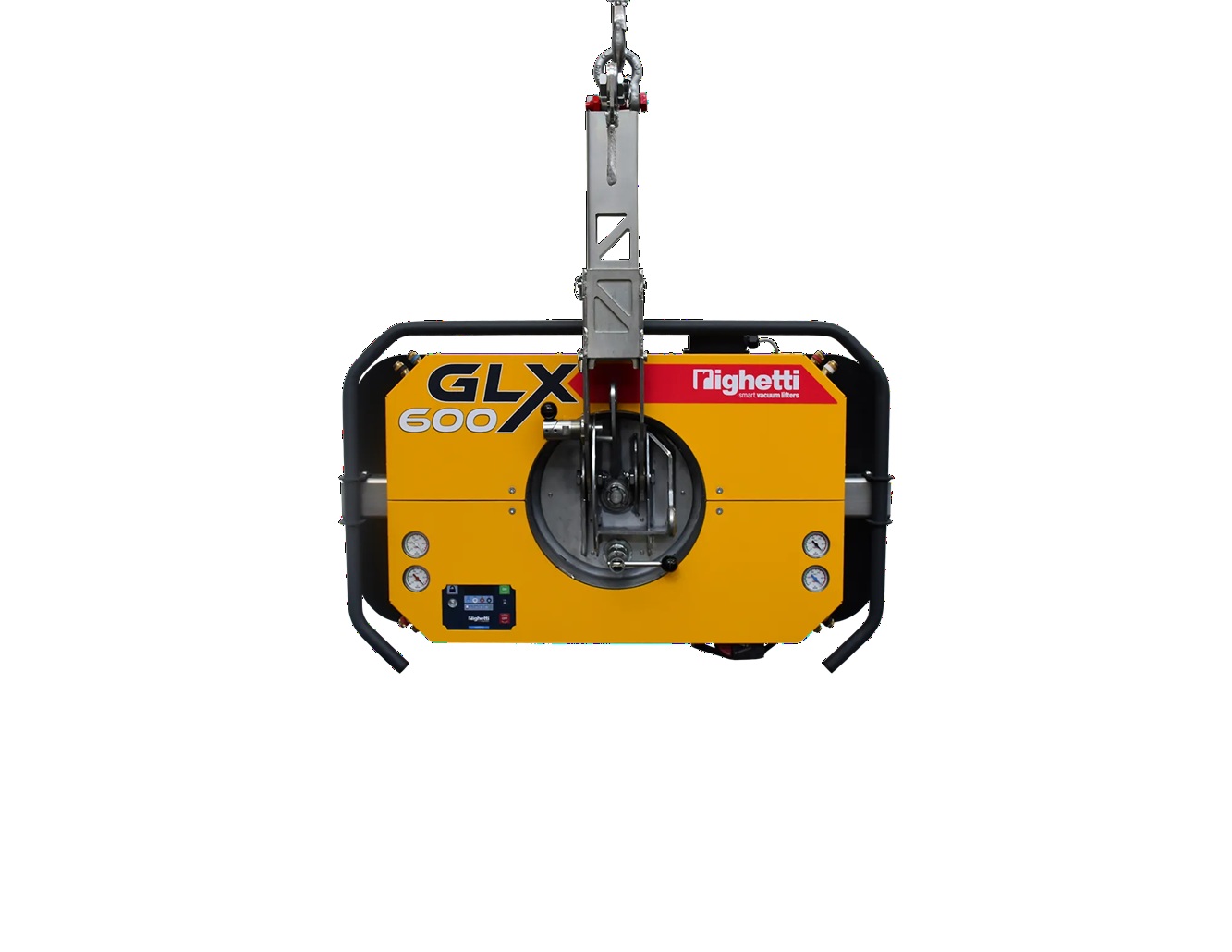

Battery-powered vacuum lifter for glass with central suction plate

GLX600 from Righetti is a battery-powered vacuum lifter for glass, developed for use with mini cranes and other lifting equipment with limited lifting capacity. Its compact design and low weight make the GLX600 well suited for handling glass panels on construction sites and during installation.

The lifter is built around a central suction plate and is equipped with four independent vacuum circuits for increased safety during lifting. This design provides high redundancy and a stable grip, even when handling narrow, tall, or heavy glass panels.

Included as standard:

• One central suction plate (810 × 480 mm)
• Four independent vacuum circuits
• 360° continuous rotation
• 0–90° tilt
• Standard lifting arm
• Vacuum control unit with digital display and LED indicators
• Enclosed casing to protect electrical components
• Lightweight frame adapted for use with mini cranes

The GLX600 is powered by an 18 V lithium battery (not included) and can be used with universal battery adapters, allowing batteries from common power tool platforms to be used. This provides high flexibility and easy integration on construction sites.

Optional features and configuration options:

• Extra suction cup set and extended configurations for lifting capacities of up to 600 kg
• Alternative configurations such as LINE, CROSS, TRIO, and EXT
• Alternative lifting arms in various lengths
• Assisted tilt for precise manual adjustment
• Electric 0–90° tilt controlled by radio remote control
• Tilt brake for controlled downward movement
• Radio remote control for remote disconnection
• Transport and storage stand

The lifting capacity ranges from approximately 300 to 600 kg, depending on the selected configuration. For a full overview of technical data, available setups, and accessories, see the datasheet.
