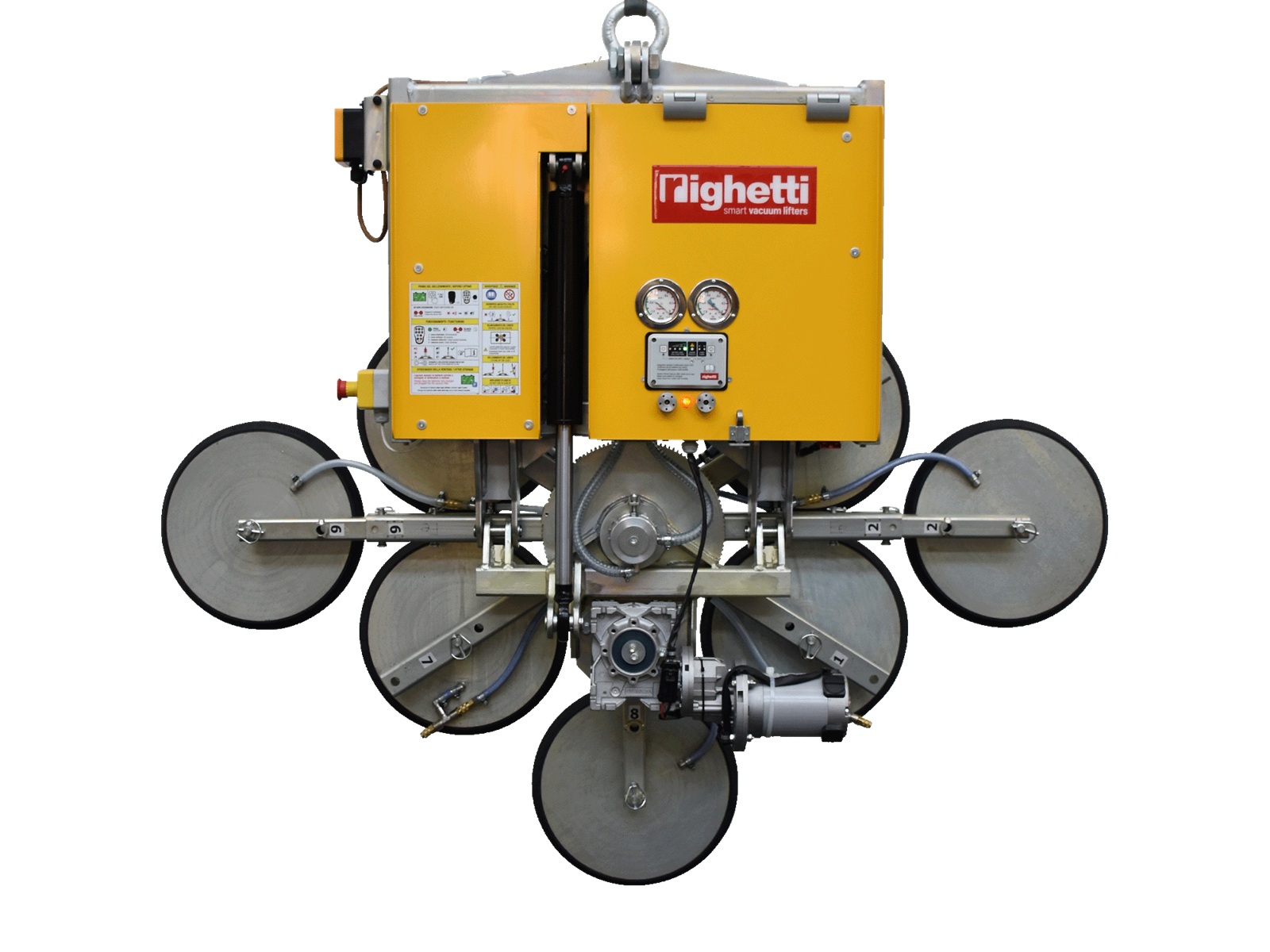

Battery-powered vacuum lifter for very heavy glass sheets with electric rotation and hydraulic tilt

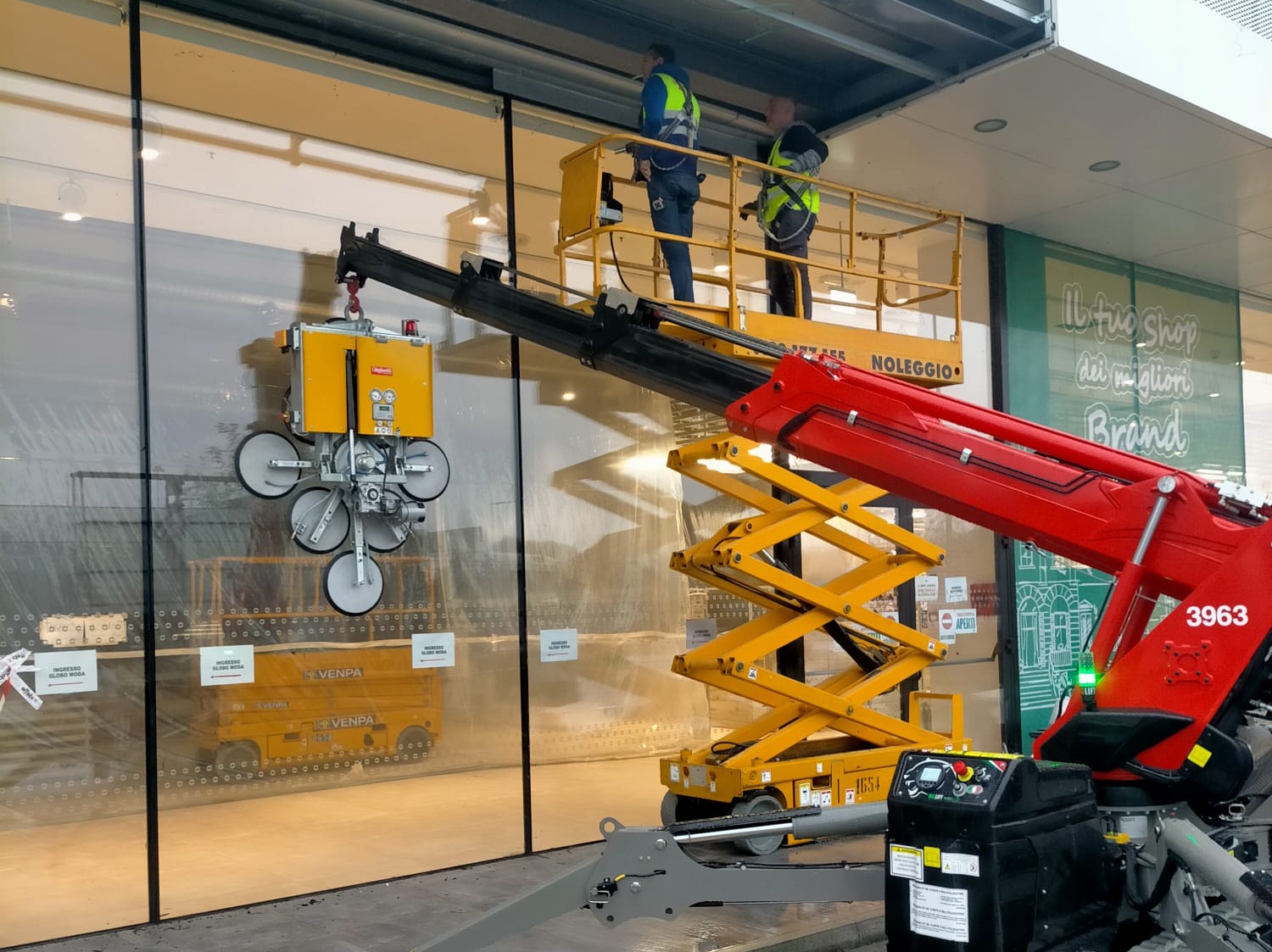

GLE4+8 d4 from Righetti is a battery-powered vacuum lifter for handling very heavy glass sheets on construction sites and during installation. The lifter is designed for professional use where high lifting capacity, precise control, and maximum safety are essential.

The lifter has a compact and slim frame with a construction depth of only 304 mm and is equipped with a total of twelve suction cups – four mounted on the main frame and eight on removable extensions. The extensions can be easily removed, allowing the lifter to be adapted to different glass sizes and lifting capacities.

GLE4+8 d4 is designed for both horizontal and vertical handling and is equipped with electric 360° continuous rotation and hydraulic 0–90° tilt. All movements, including suction and release of the load, are controlled via wireless radio control, ensuring high precision and safe operation during handling and installation.

Included as standard:

• Twelve round suction cups Ø390 mm with safety ring (4 + 8)
• Removable extensions for flexible configuration
• Electric 360° continuous rotation
• Hydraulic 0–90° tilt
• Wireless radio control for tilt, rotation, suction, and release
• Two independent vacuum circuits with vacuum reserve and check valves
• Audible and visual warning at low vacuum level
• Vacuum gauge for each vacuum circuit
• Built-in rechargeable battery with battery status indicator
• 240 V battery charger
• Energy saver for reduced power consumption
• Multi-position lifting hook
• Double safety system for load release

Optional features and configuration options:

• Alternative configurations of suction cups and extensions
• Additional warning lights or alarm system
• Transport and parking stand
• Suction cups for special glass types

Maximum lifting capacity is up to 1500 kg, depending on the selected configuration. For a full overview of technical data, setup, and available accessories, see the datasheet.
