Double-sided edge processing machine for glass

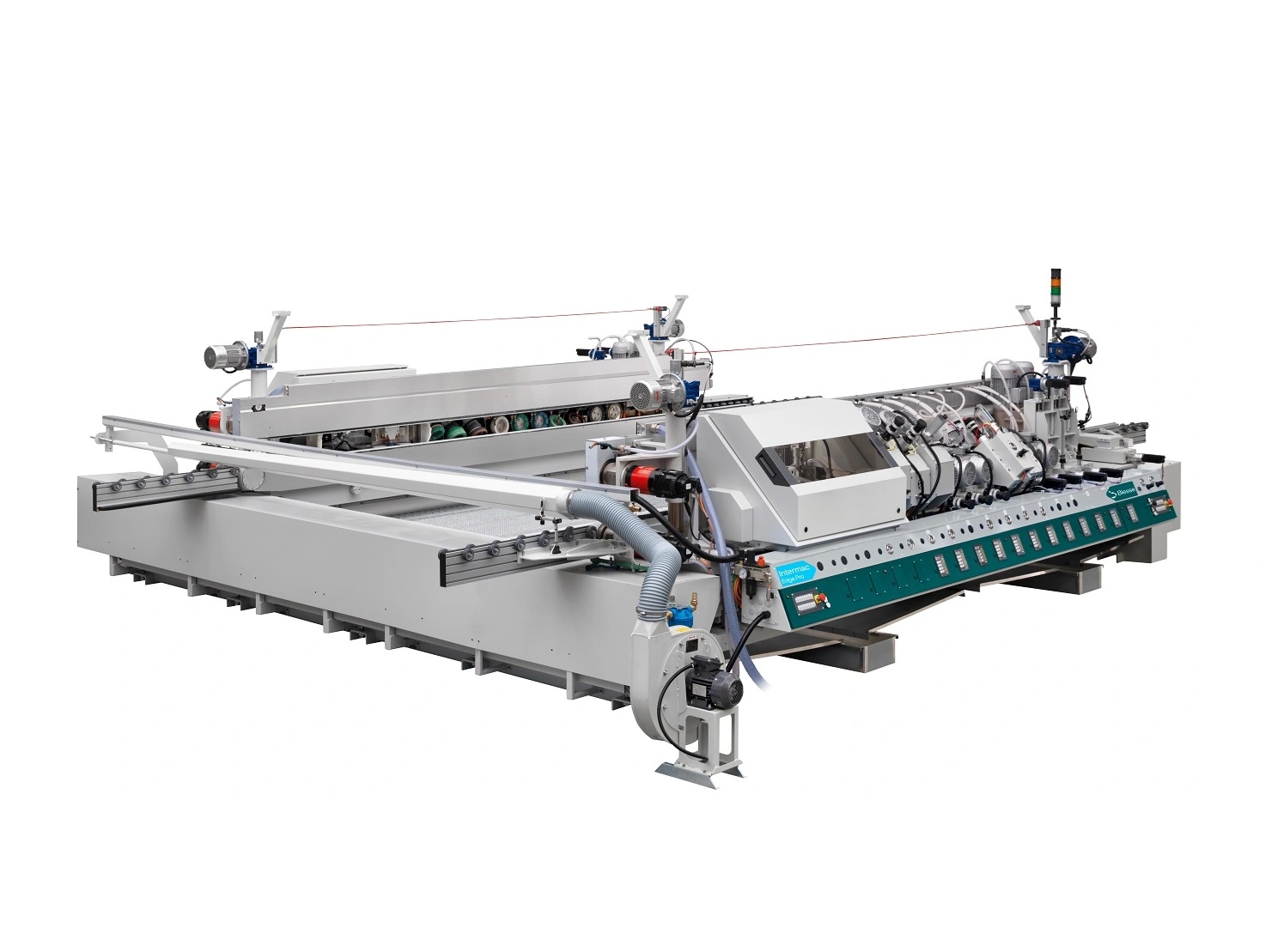

Biesse Intermac Edge Pro D F

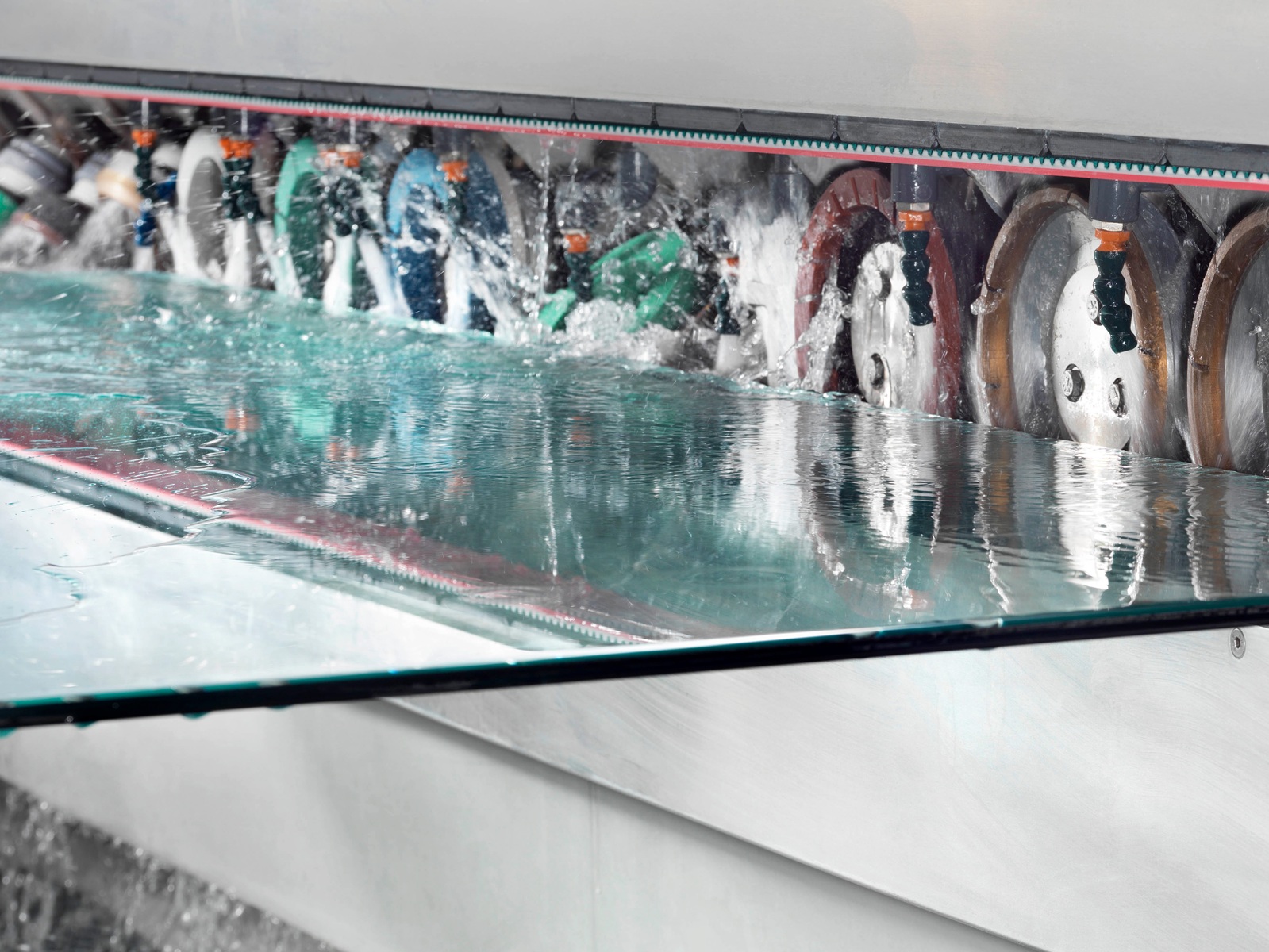

Biesse Intermac Edge Pro D F is a high-performance double-sided edge processing machine for precise grinding and polishing of straight glass edges. The machine combines stable construction with advanced control and ensures consistent edge quality, high surface finish, and efficient production – also in continuous operation and larger series.
Biesse Intermac Edge Pro D F is an advanced double-sided glass edge processing machine, developed for production environments with high demands for quality, precision, and reliable operation. The machine is designed for grinding and polishing straight edges and ensures consistent edge quality and high surface finish.
The machine is suitable for processing glass for structural facades, railings, interior glass constructions, furniture, shower solutions, and technical applications. The solid and precise adjustment system ensures correct angle and accurate parallelism for both small series and larger production volumes.
Edge Pro D F is available in two versions – Version 10 and Version 12 – with 10 and 12 processing tools respectively. The choice of version determines flexibility and capacity and makes it possible to adapt the machine to the desired production flow and edge geometry.
The machine handles glass thicknesses from 4 to 19 mm as standard, with the option to process laminated glass up to 50 mm. Advanced solutions such as automatic adjustment of polishing spindles, oscillating diamond grinding, and Biesse’s patented Radiuser technology enable precise 45° arrises and radius edges up to 5 mm – without the need for additional machines.
Edge Pro D F is built for long service life and stable performance, with robust mechanical components and high resistance to water and wear. The machine can be integrated into automated lines and adapted to various infeed and outfeed solutions, depending on the production setup.
- Application area:
- Double-sided grinding and polishing of straight glass edges
- Machine type:
- Double-sided edge processing machine
- Number of tools:
- 10 (Version 10)/12 (Version 12)
- Opening width / machine opening:
- 1300–6000 mm (adjustable to glass format)
- Minimum glass size:
- 150–400 mm
- Glass thickness:
- Glass thickness: 4–19 mm (standard) / up to 50 mm (optional)
- Tool diameter:
- 150–200 mm
- Transport speed:
- Up to 10 m/min
- Edge profiles:
- Straight edge / 45° arris / radius up to 5 mm
- Processing laminated glass:
- Yes, up to 50 mm (optional)
- Low-E processing:
- Available as an option
- Control:
- NC-controlled system with advanced HMI
- Customization and integration:
- Customized with infeed/outfeed solutions, washing, measurement systems, and line integration
