Glass cutting machine for industrial glass production

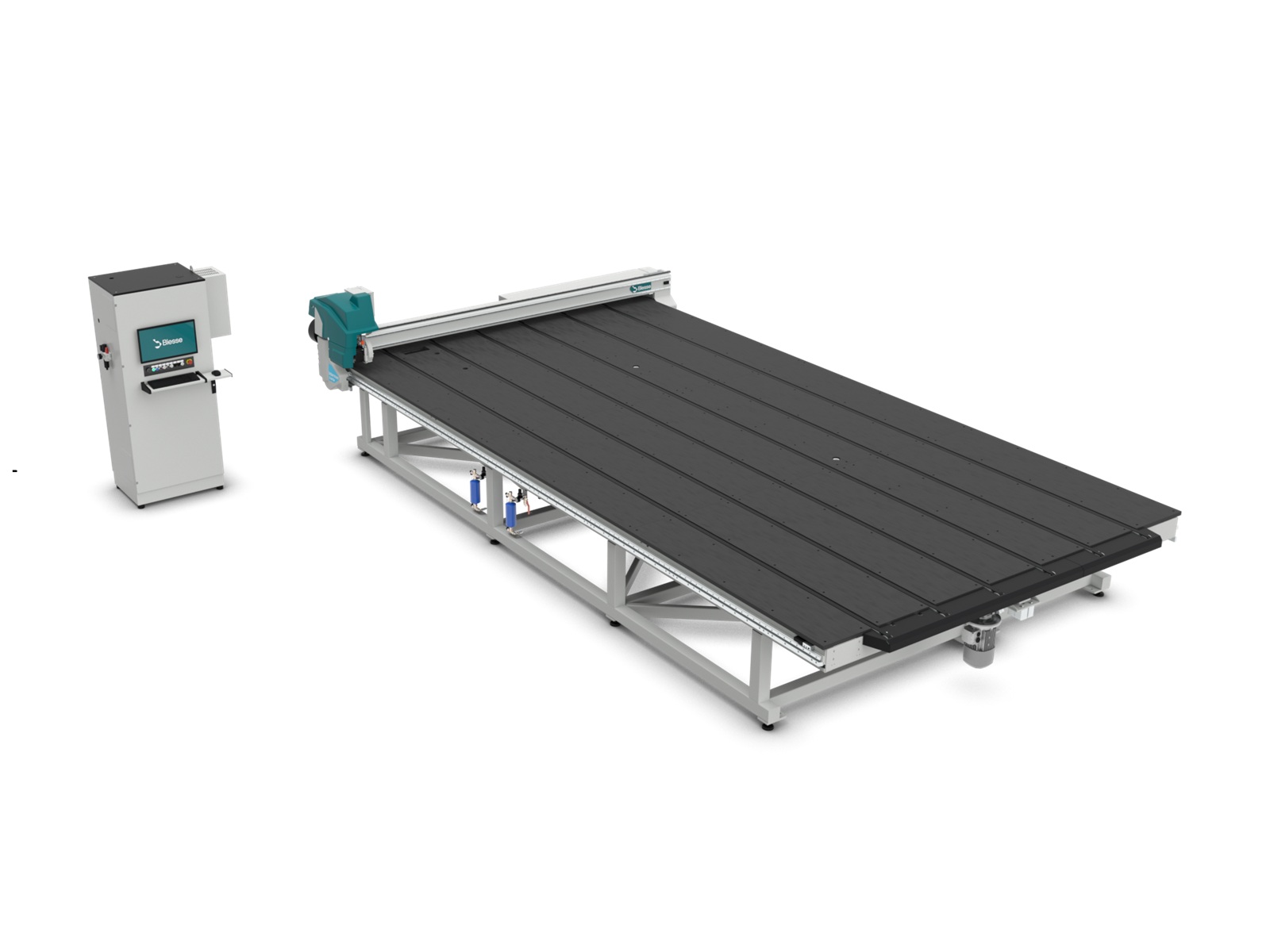

Biesse Intermac Cut Go MT is a fully automatic cutting table developed for precise and efficient cutting of single-layer glass and Low-E glass. The machine is designed for stable operation, repeatable quality, and easy integration into modern glass production.

Cut Go MT automatically handles loading, cutting, and unloading of glass sheets and is suitable both as a replacement for older cutting tables and as an entry point to automated glass cutting. The solution supports continuous production with reduced manual handling.

The machine is available in several sizes and can handle large glass formats up to 6100 × 3355 mm, while also being suitable for smaller items down to 600 × 500 mm, depending on configuration. The working area covers glass thicknesses from 3 to 19 mm, providing high flexibility in production.

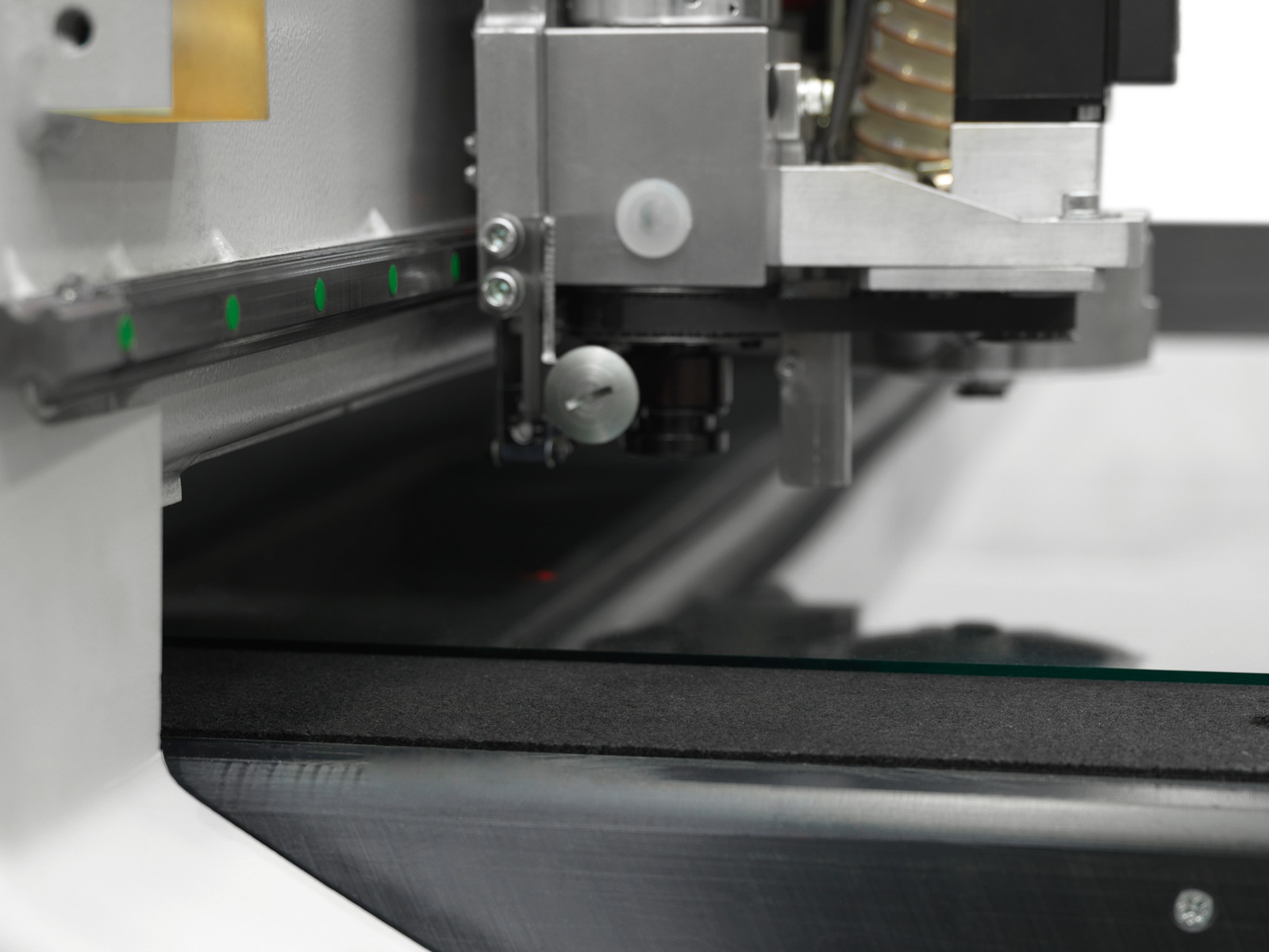

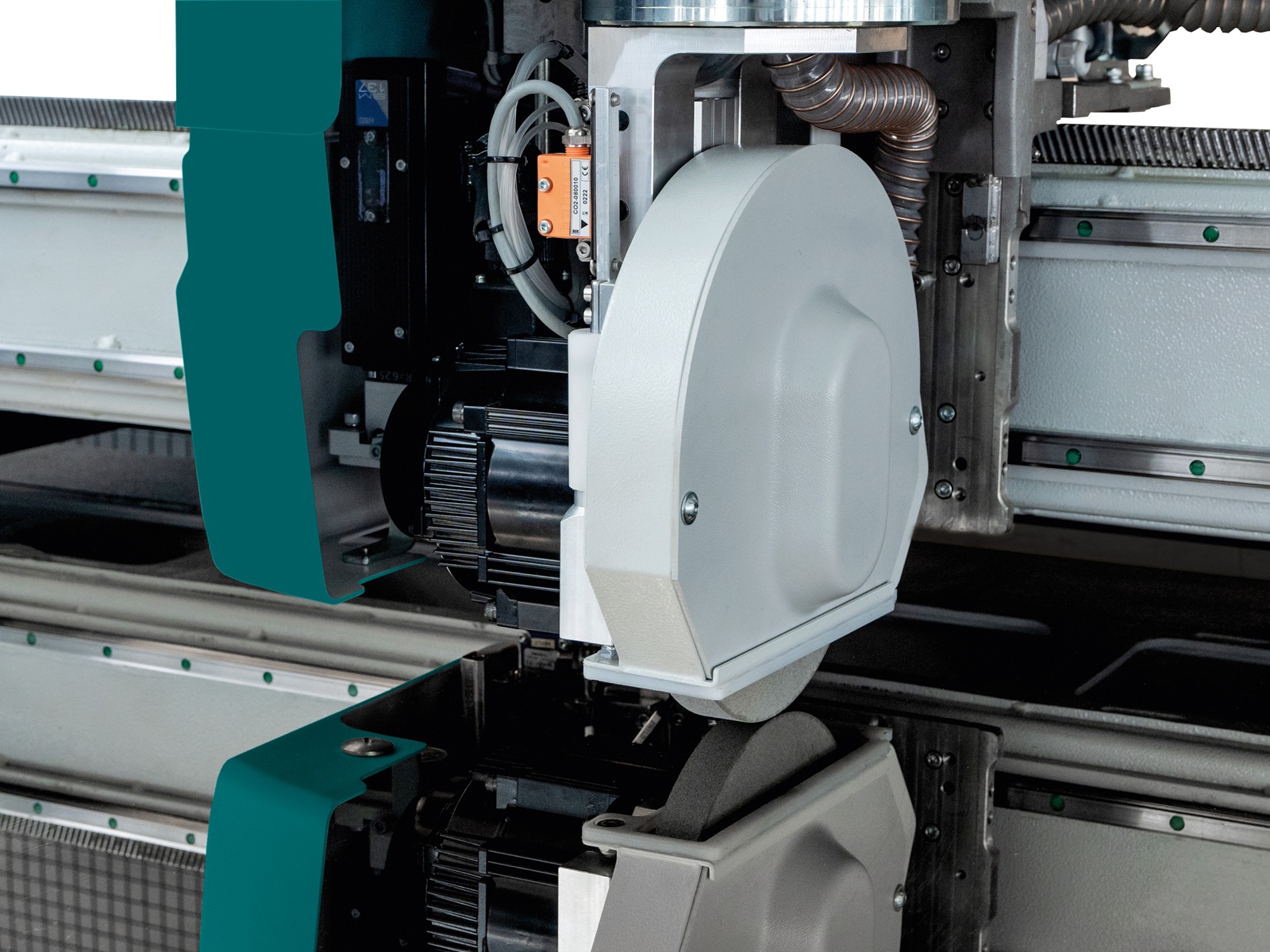

The automatic tool changer with six positions selects the correct cutting wheel and parameters based on glass type and thickness. The tangential cutting wheel with integrated dust collection ensures efficient removal of Low-E coating during both straight and shaped cuts. Cutting wheel pressure is automatically regulated via a digital proportional valve for smooth and controlled lifting.

With a maximum vector speed of up to 200 m/min, the machine supports high production speeds without compromising precision. Cut Go MT is prepared for in-line integration and can be connected to ERP systems for production data and reporting via the HMI interface.

The machine is supplied with a fully enclosed safety solution, including metal enclosure, photocells, and safety doors, ensuring operator safety and high operational reliability.
